Agilent / HP / Keysight N6731B

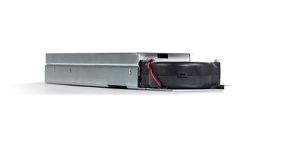

N6731B DC Power Module 0 to 5 V, 0 to 10 A, 50 W

Please help us customize your browsing experience, by selecting one the below.

Description

Agilent high performance DC power supplies offer speed and accuracy for test optimization. The single low-profile modular power system, 50-300 W, GPIB, LAN, USB, LXI Class C N6700B series provides small size up to 4 outputs in 1U of rack space; 20 DC power modules, basic, performance and precision models; as well as fast output programming with active down programming. The Agilent 50W, N6731B is a basic DC power module that provides programmable voltage and current, measurement and protection features at a very economical price, making these modules suitable to power the DUT or to provide power for ATE system resources such as fixture control.

Key Points

Programming Accuracy

Ripple & Noise from 20Hz to 20MHz

Load Regulation V/C from 4mV to 2mA

Output 1,Volts/ Max. Current from 5V to 10A

Output 2,Volts/ Max. Current from 5V to 20A

Total Power of 50W to 100W

DC Power Module Type

Number of Outputs is 1o/p

Specifications

Output Ratings

Voltage: 5 V
Current (derated 1% per °C above 40°C): 10 A / 20 A
Power: 50 W / 100 W

Programming Accuracy (at 23°C ±5°C after 30 minute warm-up. Applies from min. to max. program)

Voltage: 0.1% + 19 mV
Current: 0.15% + 20 mA

Ripple & Noise from 20 Hz to 20 MHz

CV peak-to-peak: 10 mV / 11 mV
CV rms: 2 mV
(PARD) CC rms: 8 mA

Load Effect (Regulation) (for any output load change, with a maximum load-lead drop of 1 V per lead)

Voltage: 5 mV
Current: 2 mA
