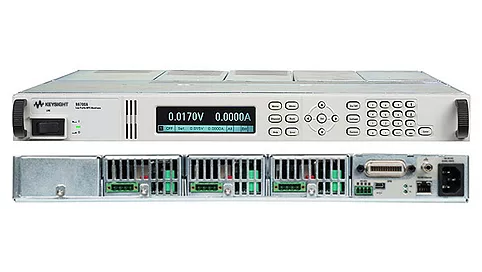

Agilent / HP / Keysight N6702A

N6702A Low-Profile Modular Power System Mainframe, 1200W, 4 Slots

Please help us customize your browsing experience, by selecting one the below.

Description

This high performance DC power supplies have speed and accuracy for test optimization. The single low profile modular power system, 50-300W, GPIB, LAN, USB, LXI Class C N6700B series has a small size up to 4 outputs in 1U of rack space, 20DC power modules, basic, performance and precision models, also has a fast output programming with active down programming. This unit is a 1U, 4 slot mainframe that accepts 1 to 4 N6700 series modules in any combination.

Key Points

Maximum Total Output Power

AC Input

Fuse Internal fuse (not customer accessible)

Protection Response Characteristics

INH input is 5µs

<

p>Fault on coupled outputs is <10µs

Specifications

Total Power: 1200W

Type: Mainframes

Nominal Input Ratings: 100VAC to 240VAC; 50/60Hz/400Hz

Input Range: 86VAC to 264VAC

Power Consumption: 3000VA typical

INH input: 5µs

<

p>Fault on coupled outputs: <10µs
