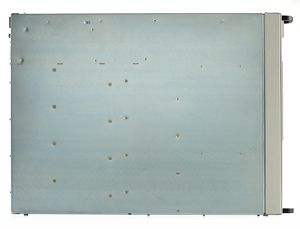

Agilent / HP / Keysight N6700B
N6700B Low-Profile Modular Power System Mainframe, 400W, 4 Slots
Description

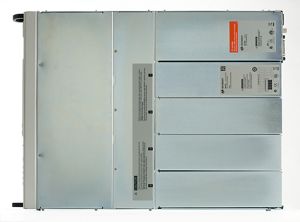

The Agilent N6700B is a 400 W 1U high, 4-slot modular power system mainframe that accepts from 1 to 4 N6700 series DC power modules in any combination. Modules are ordered separately. The N6700B offers GPIB, LAN, and USB, interfaces standard, and LXI Class C compliance. Select from more than 20 different DC power modules, ranging in capability from basic to high precision, and in power from 20 - 300 W.
Key Points
Low-profile Modular Power System Mainframe, 400W
Ideal for ATE systems in R&D, Design Validation, and Manufacturing
Small size: up to 4 outputs in 1U of rack space, total available output power = 400W
Flexible, modular system: Can mix and match power levels and performance levels to optimize investment
Performance modules for critical test requirements
Value modules for basic DC power requirements
Fast command processing times to improve throughput
Connect via GPIB, LAN, or USB
Outputs can be sequenced
Outputs can be connected in series or parallel
Options include output disconnect relays and High Speed Test Extensions
Specifications
Maximum total output power:400 W, when operating from 100 – 240 VAC input
Command processing time: ≤ 1 ms
Protection response characteristics:
INH input:5 μs from receipt of inhibit to start of shutdown
Fault on coupled outputs:< 10 μs (from receipt of fault to start of shutdown)
Digital control characteristics:
Maximum voltage ratings:16.5 VDC/- 5 VDC between pins (pin 8 is internally connected to chassis ground)
Pins 1 and 2 as FLT output:
Maximum low-level output voltage :0.5 V @ 4 mA
Maximum low-level sink current:4 mA
Typical high-level leakage current : 0.14 mA @ 16.5 VDC
AC input:
Nominal input ratings:100 VAC – 240 VAC; 50/60 Hz/400 Hz
Input range:86 VAC – 264 VAC
Power consumption:1000 VA
Weight:12.73 kg; 28 lbs.
