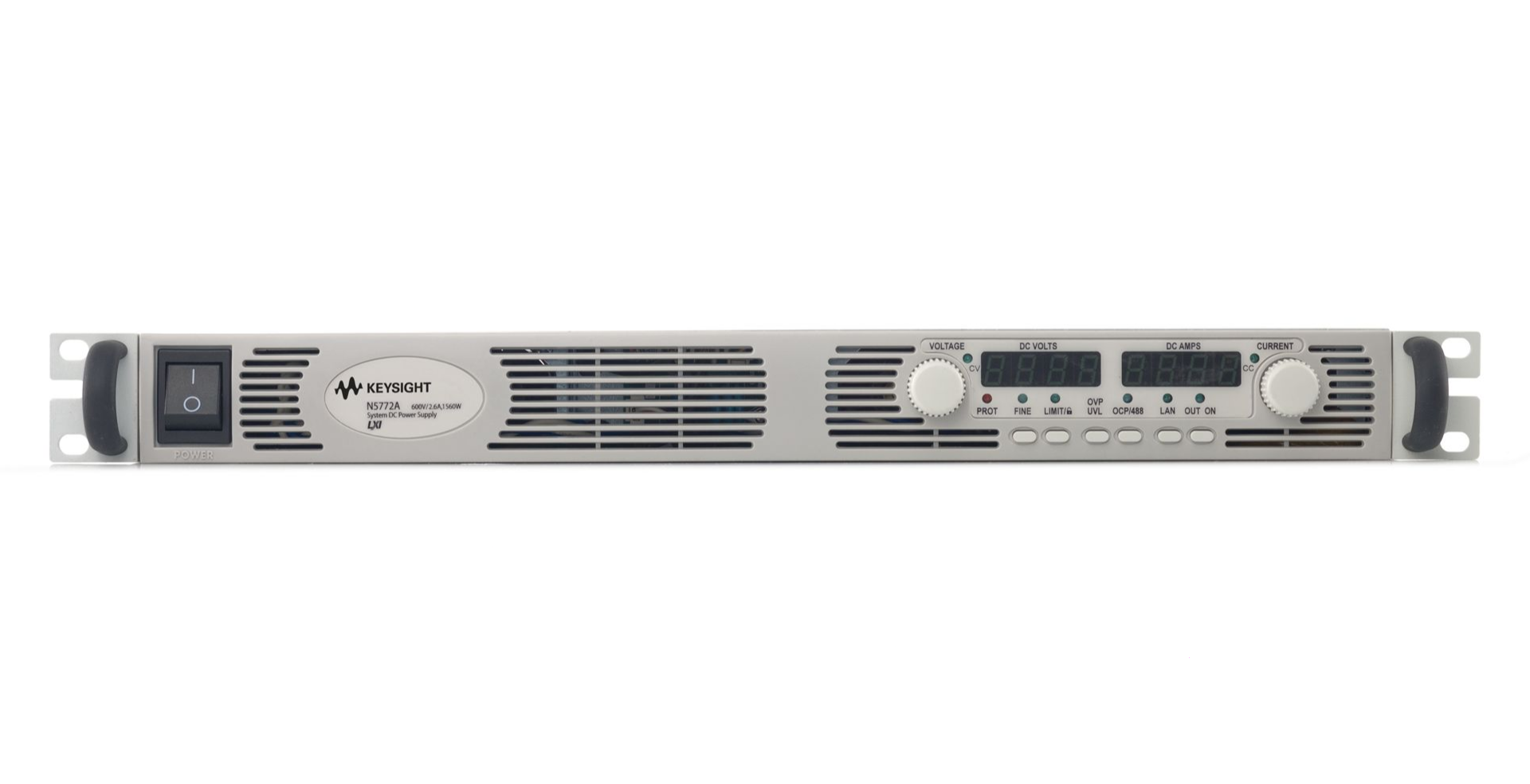

Agilent / HP / Keysight N5772A
N5772A ATE System Power Supply, 600 V, 2.6 A, 1560 W
Description
This DC Power Supply offers essential features for a tight budget.
This single Power Supply is designed to help save valuable rack space with as a small, high density 1U supply, and offers solid performance and a variety of basic and enhanced capabilities.
Key Points
Programming Accuracy of 0.05%+ 300mV and 0.1%+ 2.6mA
Ripple Noise of CV p-p 300mV, CV rms 60mV and CC rms 12mA
Load Effect Voltage of 62mV
Load Effect Current of 5.5mA
Load Transient Recovery Time of ≤2ms
Specifications
Load Regulation V/C: 62mV to 5.5mA
Output 1,Volts/ Max. Current: 600V to 2.6A
Total Power: 1560W
Type: DC Power Supply
Load Effect Voltage: 62mV
Load Effect Current: 5.5mA
Load Transient Recovery Time: ≤2ms
