Agilent / HP / Keysight N5769A

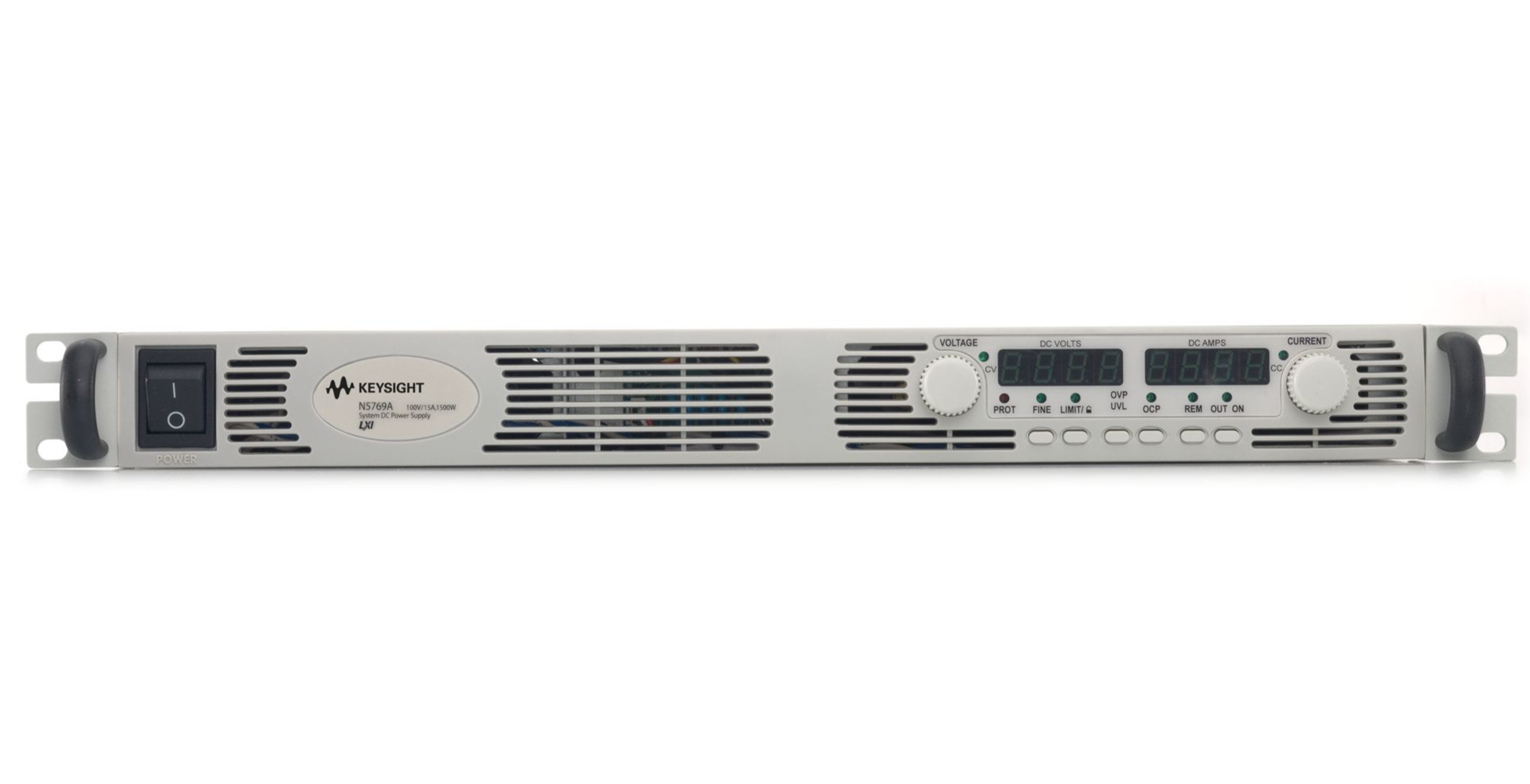

N5769A ATE System Power Supply, 100 V, 15 A, 1500 W

Please help us customize your browsing experience, by selecting one the below.

Description

This power supply has a single output and 1U high size, universal AC input, analog/resistance control of output voltage and current, and also has parallel and series connection of multiple supplies. This unit was designed to save rack space with as a small, high density 1U supply, and it provides a solid performance and a variety of basic and enhanced capabilities.

Key Points

Voltage of 100V

Current of 15A

Power of 1500W

CV p-p of 80mV

CV rms of 8mV

CC rms of 45mA

Load Transient Recovery Time of ≤1ms

Specifications

Load Regulation V/C: 12mV to 8mA

Output 1,Volts/ Max. Current: 100V to 15A

Total Power: 1500W

Type: DC Power Supply

Number of Outputs: 1o/p

Output 1 Max. power: 1500Watts

Output 1/Range 1 Max. Current: 15A
