Agilent / HP / Keysight N5766A

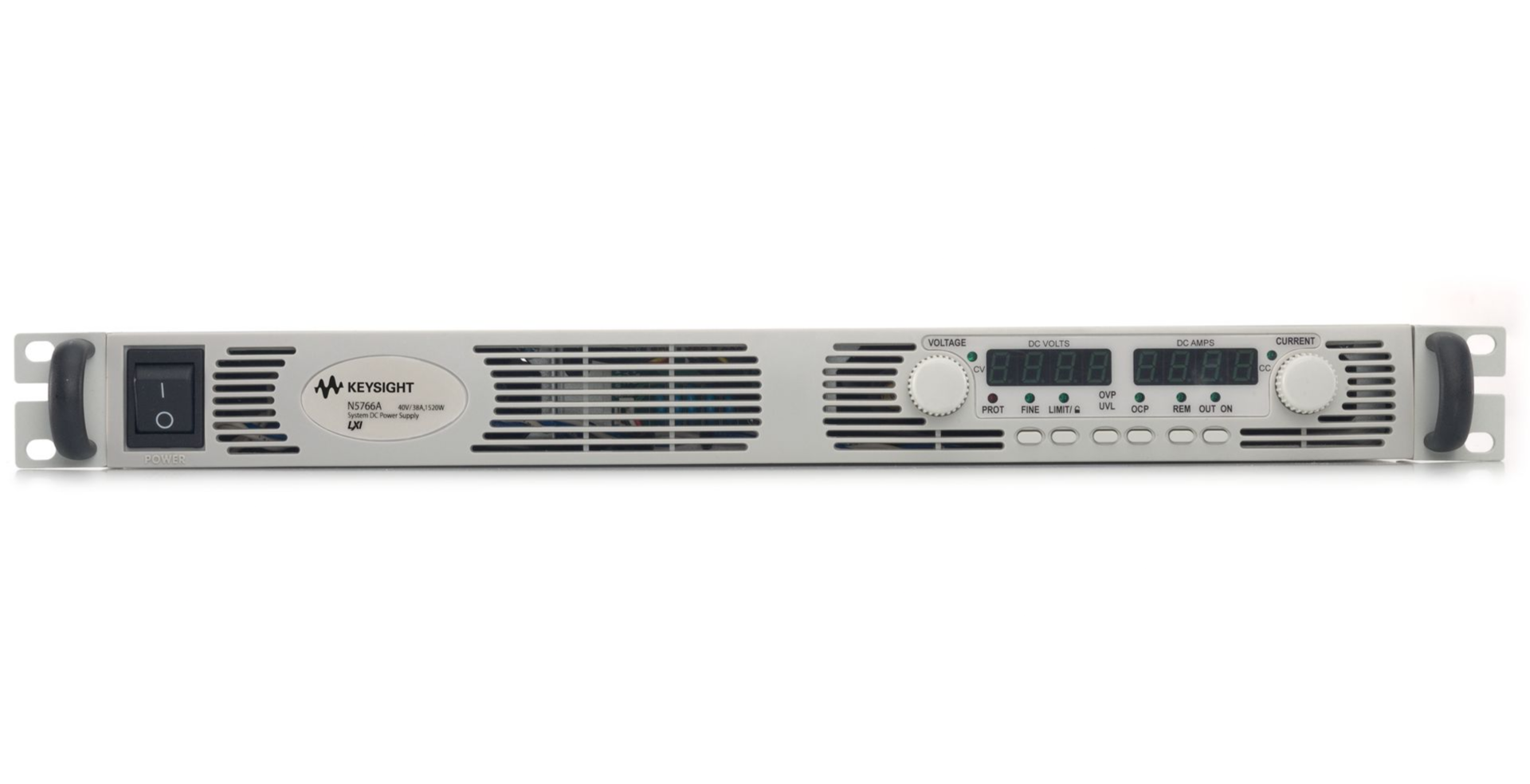

N5766A Power Supply, 40 V, 38 A, 1520 W
Description
This Power Supply provides stable output power and built in voltage and current measurement.
Its small 1U high size saves valuable rack space.
For greater flexibility GPIB, LAN and USB 2.0 interface are provide standard allowing you to access the instruments via your choice of interface.
It can be operated from line voltages of 85 to 265Vac, 47 to 63Hz, with no switch to set or fuses to change when you switch from one voltage standard to another.
They also provide power factor correction.
Key Points
40 V, 38 A, 1520 W
Outputs can be connected in parallel and in series
Over voltage, over current and over temperature protection
Analog programming and monitoring
GPIB, LAN, USB 2.0 interfaces
85 265Vac Universal AC input
IVI COM drivers
Standard Commands for Programmable Instruments (SCPI)
Specifications
Total Power: 1520W
Voltage Range: 40V
Current Range: 38A
Measurement Voltage Accuracy: 0.1% + 6mV
Measurement Current Accuracy: 0.1% + 114mA
