Agilent / HP / Keysight N5761A

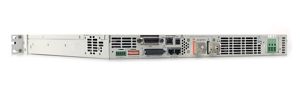

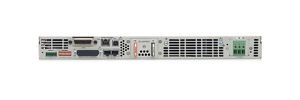

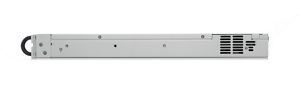

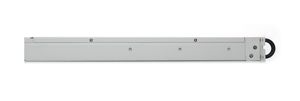

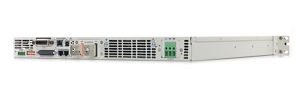

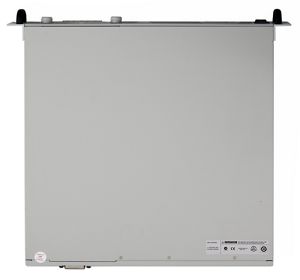

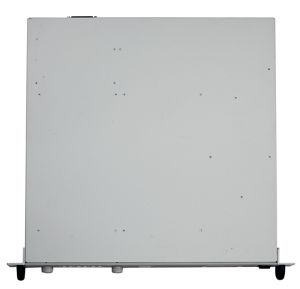

N5761A Power Supply, 6 V, 180 A, 1080 W

Please help us customize your browsing experience, by selecting one the below.

Description

This DC power supply offers essential features for a tight budget. The single output, 750 1500 W GPIB, LAN, USB, LXI Class C N5700 series provide 1U high size, universal AC input, analog/resistance control of output voltage and current, as well as parallel and series connection of multiple supplies. This 1080W, GPIB, single output this unit is designed to help save valuable rack space with as a small, high density 1U supply, and offers solid performance and a variety of basic and enhanced capabilities.

Key Points

6V, 180A, 1080W

Outputs can be connected in parallel and in series

Over voltage, over current and over-temperature protection

Analog programming and monitoring

GPIB, LAN, USB 2.0 interfaces

85 265Vac Universal AC input

IVI-COM drivers

Standard Commands for Programmable Instruments (SCPI)

Specifications

Load Regulation V/C: 2.6mV to 41mA

Output 1,Volts/ Max. Current: 6V to 180A

Total Power: 1080W

Type: DC Power Supply
