Agilent / HP / Keysight N5749A

N5749A DC System Power Supply, 100V, 7.5A, 750W

Please help us customize your browsing experience, by selecting one the below.

Description

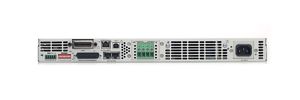

This Power Supply is an affordable single output programmable DC power supply provides stable output power and built in voltage and current measurement.

Its small 1U high size saves valuable rack space.

For greater flexibility GPIB, LAN and USB 2.0 interface are provide standard allowing you to access the instruments via your choice of interface.

Key Points

Outputs can be connected in parallel and in series

Over voltage, over current and over temperature protection

Analog programming and monitoring

GPIB, LAN, USB 2.0 interfaces

85 to 265Vac Universal AC input

IVI COM drivers

Specifications

Voltage output ratings: 100V

Current output ratings: 7.5A

Power output ratings: 750W

Voltage accuracy: 0.05%+ 50mV

Current accuracy: 0.1%+ 7.5mA
