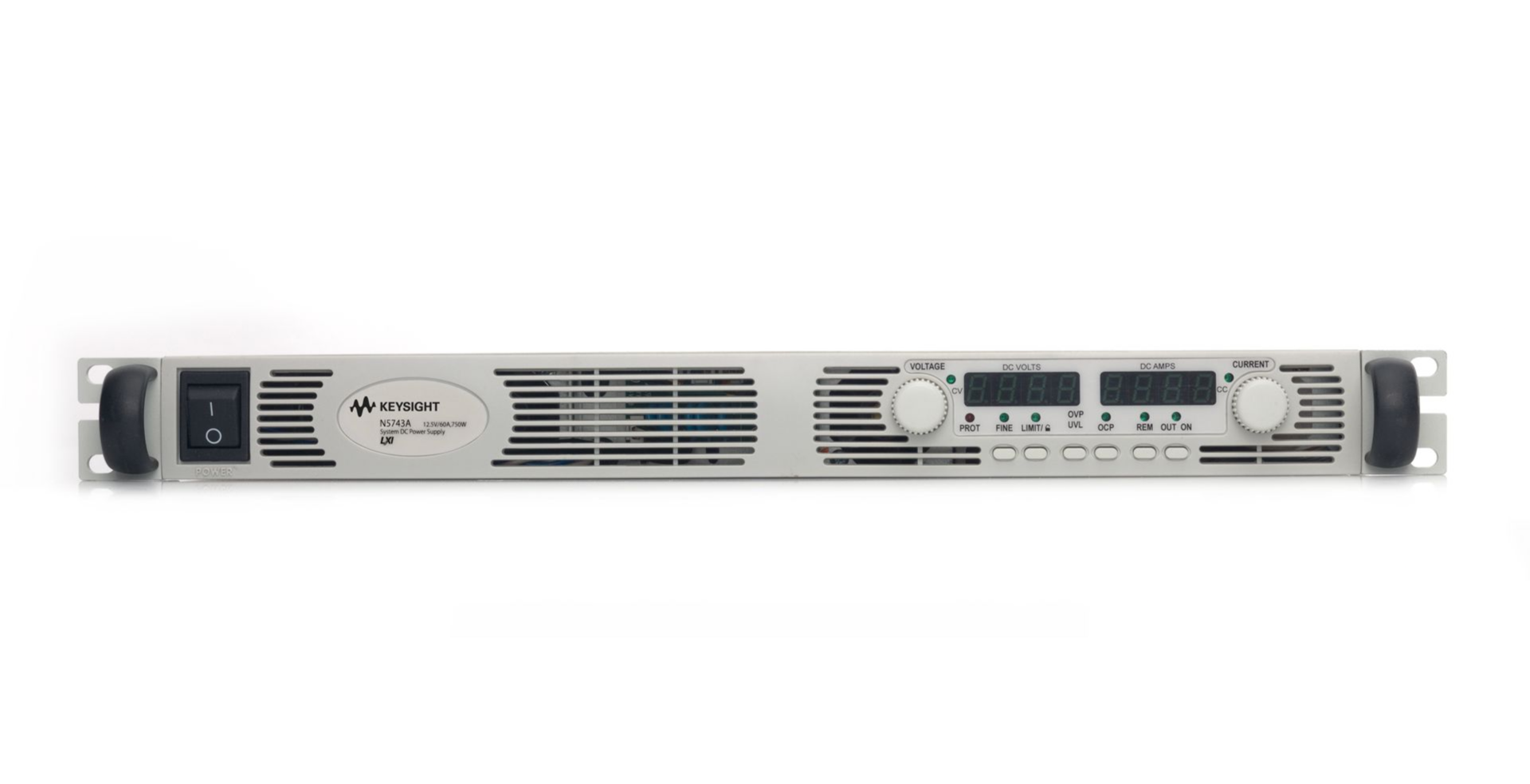

Agilent / HP / Keysight N5743A
N5743A DC System Power Supply, 12.5 V, 60 A, 750 W
Description
This Power Supply is an affordable single output programmable DC power supply provides stable output power and built in voltage and current measurement. Its small 1U-high size saves valuable rack space. For greater flexibility GPIB, LAN and USB 2.0 interface are provide standard allowing you to access the instruments via your choice of interface.
Key Points
Outputs can be connected in parallel and in series
Over-voltage, over-current and over-temperature protection
Analog programming and monitoring
VI-COM drivers
Standard Commands for Programmable Instruments (SCPI)
Specifications
Number of Outputs: 1o/p
Output power: 750Watts
Height: 43.6mm(1.71in)
Length: 432.8mm(17.03in)
Weight: 7kg(15.43lb)
