Agilent / HP / Keysight N5413A
N5413A DDR2 Compliance Test Application for Infiniium 54850, 80000 and 90000 Series Oscilloscopes
Description
N5413A DDR2 Compliance Test Application for Infiniium 54850 and 80000 Series Oscilloscopes

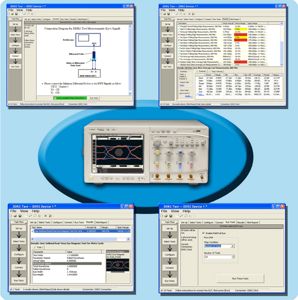

The N5413A DDR2 compliance test software gives you a fast, easy way to test, debug and characterize your DDR2 designs.
The DDR2 devices operate above 800 MT/s and feature a smaller footprint and lower power consumption than DDR1 devices.
At these fast transfer speeds, signal integrity is key to reliable and interoperable performance.
The N5413A DDR2 compliance test software performs a combination of clock jitter measurements and electrical tests that let you thoroughly evaluate DDR2 devices in accordance with the JEDEC JESD79-2C DDR2 SDRAM.
Specification and the Intel® DDR2 667/800 JEDEC
Specification Addendum Rev. 1.1.
The N5413A Advanced Debug mode provides further insights for root-cause analysis.
Key Points
Compliance testing of clock jitter, electrical and timing measurements in accordance to JEDEC specifications
Comprehensive analysis that automates the complex measurements, even when you are not there
Unique Read and Write separation techniques with InfiniiScan Zone
Qualify trigger
Superior signal integrity and probing that meets DDR2 measurement needs
Specifications
Compliance testing of clock jitter, electrical and timing measurements in accordance to JEDEC specifications
Comprehensive analysis that automates the complex measurements, even when you are not there
Unique Read and Write separation techniques with InfiniiScan Zone Qualify trigger
Superior signal integrity and probing that meets DDR2 measurement needs
