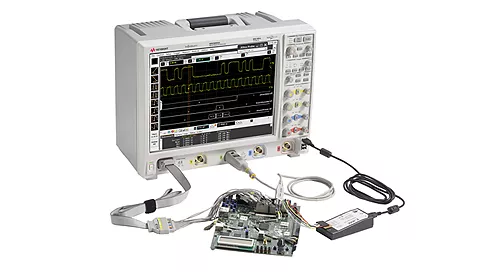

Agilent / HP / Keysight N5397A

This FPGA dynamic probe application accelerates debug of systems with FPGAs. The application reduces instrument setup time allowing the first internal FPGA measurement to be made in minutes. Successive incremental internal measurements can be done in seconds without stopping the FPGA, modifying the HDL design, or changing timing. This unit interfaces with an ATC2 on chip debug core included in Xilinx ChipScope Pro software.
