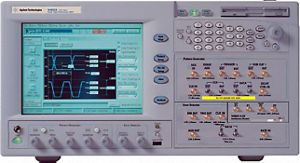

Agilent / HP / Keysight N4901B
N4901B Serial BERT 13.5 Gb/s
Description
This Serial BERT covers the frequency range of 620Mb/s to 13.5Gb/s.
This Test Set provides built-in true differential inputs/outputs, clock data recovery (CDR) and enhanced jitter capabilities.
The unique capabilities address a broad range of applications in the semiconductor and communication industry.
Key measurements are : output timing (RJ/DJ Separation, bathtub curve, setup and hold time), output level (Q-factor, average power), eye opening and BER.
The instrument´s unique new capabilities and its ability to address a broad range of applications and technologies in the semiconductor and communication industry will help customers to protect investment made in measurement instrumentation.
Key Points
True differential data generation and analysis
Superior pulse performance
Bathtub curve
Output level
Q factor
Spectral jitter decomposition
Fast eye mask
Error location capture
Specifications
Frequency Range: 150Mb/s to 13.5Gb/s
<
p>Input Sensitivity: <50mVpp
Minimum Data Rate: 150.00Mbps
Maximum Data Rate: 13.50Gbps
Output Amplitude: 0.05Vpp to 2Vpp
Threshold: -2V to 3V
Clock/Data Delay: +/- 0.75ns
