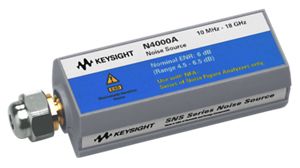

Agilent / HP / Keysight N4000A
N4000A SNS Series Noise Source 10 MHz to 18 GHz (ENR 6 dB)
Description
This unit is a 10MHz to 18GHz noise source with nominal ENR 6dB.
It's designed for accurately measuring devices with low noise figure, or devices whose gain is especially sensitive to small changes in source impedance.
DUT's with noise figure up to 20dB can be accurately and reliably measured with this device.
This noise sources has a choice of connectors, with an APC 3.5(m) connector as standard.
Key Points
Electronic storage of Excess Noise Ratio (ENR) calibration data decreases the opportunity for user error.
Automatic download of ENR data to the NFA speeds overall set-up time.
Temperature compensation improves measurement accuracy leading to tighter specification of device performance.
Specifications
Frequency Range Min.: 10.0MHz
Frequency Range Max.: 18.000GHz
