Agilent / HP / Keysight N3301A

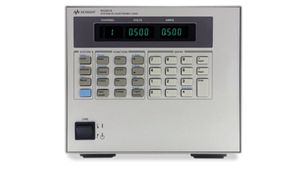

N3301A 600 Watt DC Electronic Load Mainframe
Description
This DC Electronic Load Mainframe, with 2 slots that accepts combinations of N330x user installable load modules (150W to 600W) for easy system configuration and future reconfiguration.
It holds up to two N3302A, N3303A, N3304A, and N3307A load modules, or one N3305A and N3306A load modules, allowing up to 600 watts of total maximum power.
A single GPIB address is all you need for complete control and read back of all load modules within a single N3301A, DC Electronic Load Mainframe.
The N330xA Series of DC electronic loads provides fast operation and the accurate programming and read back needed for high volume DC power supply test systems.
Key Points
Stable operation down to zero volts
Built in pulse waveform generation with programmable amplitude, frequency, duty cycle and slew rate
Full protection from over current, over voltage, over power, over temperature, and reverse polarity
Trigger for external synchronization
Parallel units in constant current mode for higher power
Electronic calibration
Specifications
Total Power: 600W
Operating Range: 100 to 250Vac
Input Current: 2.3A @ 100 to 250Vac
Input VA: 230VA
