Agilent / HP / Keysight N2294A

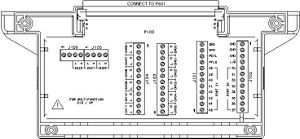

N2294A Screw Terminal Block for the N2264A Multifunction Module

Note: Federal Resellers: We Do Not Sell New Equipment
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

This Screw Terminal Block connection accessory for the N2264A 12+3 GP + 16-bit Digital I/O Module.

The 12 general-purpose channels are non-latching relays that can switch up to 200V, 1 A, 60W or 62.5VA.

The three high-current channels are non-latching relays switching up to 5 A, 125VDC, or 200VAC RMS.

The 16-bit digital I/O provides 16 bi-directional data lines (bits) plus three lines used for control and handshaking.

Key Points

12 + 3 GP + 16-bit digital

I/O in one module

High-speed switching in parallel operation

Built-in relay cycle counters

Specifications

Maximum Voltage: 200V

Maximum Current: Per channel 1A

Maximum Power: Per channel 60W; 62.5VA

Thermal Offset: <3µV
