Agilent / HP / Keysight N1953B

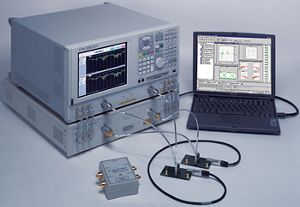

N1953B Physical Layer Test System, 10 MHz to 20 GHz
Description
The Agilent physical layer test system has the highest accuracy and most comprehensive approach for characterizing single-ended or differential physical layer components like the high-speed backplanes, cables, connectors, packages, and controlled impedance traces on circuit boards.
Key Points
Powerful analysis tools include time-domain reflectometry (TDR), time-domain transmission (TDT), frequency-domain, and eye diagrams
Complete characterization of single-ended, differential, common-mode, and mode-conversion of your device
E8362B PNA series vector network analyzer with Option 014
Advanced calibration techniques remove the errors from the measurement equipment and cables and set the reference plane at the device under test
