Agilent / HP / Keysight MSO8064A

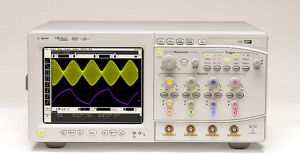

MSO8064A Infiniium Mixed Signal Oscilloscope: 600 MHz, 4 scope and 16 digital channels

Note: Federal Resellers: We Do Not Sell New Equipment
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

Gain superior insight into analog, digital, or serial design challenges. The Infiniium MS- Windows®-based MSO8064A provides unmatched acquisition performance with up to 128 Mpts of deep memory mapped to a high-definition display, powered by MegaZoom technology.

Key Points

600MHz Bandwidth - 4 scope channels - 16 digital channels - 4GSa/s sample rate:
8 Mpts standard memory depth with options to 128 Mpts

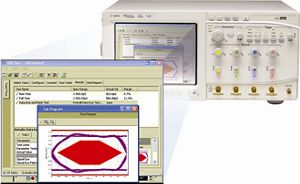

Extensive selection of software applications

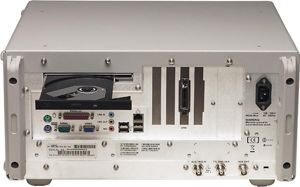

Connectivity: LAN, USB, GPIB, LXI class C compliant and XGA video

#Analog Signal Viewing:
XGA color display with 256 levels of intensity
Windows based touchscreen with drag and drop measurements
Vector Signal Analysis Option

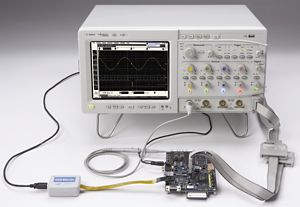

#Digital Signal Triggering and Analysis with mixed signal oscilloscope (MSO) models:
16 digital channels, time correlated with 4 scope channels
Pattern and mixed signal triggering across all analog and digital channels
Only integrated FPGA Dynamic Probe Application Options
Analog chart of digital bus activity

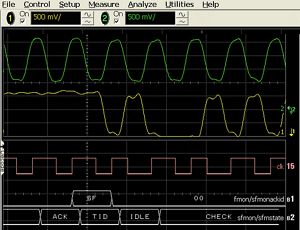

#Serial Decode:
I2C and SPI decode option
CAN serial decode option

Specifications

Vertical: scope channels:
Input channels:4 analog + 16 digital
Analog bandwidth @ 50 ohm (–3 dB):600 MHz
Calculated rise time @ 50 ohm:350 ps
Input impedance: 1 Mohm ± 1% (13 pF typical), 50 ohm ± 1.5%
Sensitivity:1 mV/div to 5 V/div (1 Mohm),1 mV/div to 1 V/div (50 ohm)
Input coupling:1 Mohm: AC, DC; 50 ohm:DC
Hardware bandwidth limit:20 MHz
Vertical resolution: 8 bits, >=12 bits with averaging
Dynamic range:± 8 div from center screen (1 Mohm), ± 12 div from center screen (50 ohm)

Vertical: digital channels:
Number of channels:16 Digital – labeled D15 – D0
Threshold selections:TTL, 5.0V CMOS, 3.3V CMOS, 2.5V CMOS, ECL, PECL, user defined
User-defined threshold range:±8.00 V in 10 mV increments
Maximum input voltage:±40 V peak CAT I
Threshold accuracy:±(100 mV + 3% of threshold setting)
Input dynamic range:±10 V about threshold
Minimum input voltage swing:500 mV peak-to-peak
Input impedance:100 kohm ± 2% (~ 8 pF) at probe tip
Channel-to-channel skew:2 ns typical, 3 ns maximum
Glitch detect:>= 2.5 ns
Resolution:1 bit

Horizontal:
Main time base range:500 ps/div to 20 s/div
Horizontal position range:0 to ± 200 s
Delayed sweep range:1 ps/div to current main time base setting
Resolution:4 ps
Timebase accuracy:15 ppm (±0.0015%)

General characteristics:
Power:100-240 VAC, ± 10%, Cat II, 47 to 440 Hz; Max power dissipated: 390 W
Weight Net: 13.4 kg (29.5 lbs.)
Dimensions (excluding handle):Height: 216 mm (8.5 in); width: 437 mm (17.19 in); depth: 440 mm (17.34 in)
Temperature:
Operating:0°C to + 50°C
Non-operating:–40°C to + 70°C
