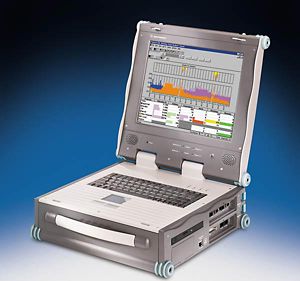

Agilent / HP / Keysight J6800A
J6800A Network Analyzer
Description
This Analyzer is a portable "all under one handle" system that includes two time synchronized data acquisition systems, each supporting any LAN or WAN/ATM plug in line interface module (LIM).
This unit Supports any available LAN or WAN/ATM LIM, where LIMs are hot swappable and interchangeable.
Key Points
Supports any available LAN or WAN/ATM LIM
LIMs are hot swappable and interchangeable
Full rate capture from any LIM up to 1Gb/s
32 real time hardware capture filters
Advanced auto encapsulation detection (patent pending)
Internal time synchronization between acquisition systems
Interfaces for external GPS receiver for global time-synchronization
Specifications
Temperature:
Operating: +5oC to +40oC (+41oF to +104oF)
Non-operating: -25oC to +60oC (-13oF to +140oF)
Humidity:
Operating: 20% to 80% rh
Storage:10% to 90% rh
Altitude:
Operating: 4,575 meters (15,000 feet)
Storage: 12,200 meters (40,000 feet)
Power Requirements:
External 100 to 240V~, 50-60Hz, 2.5A
