Agilent / HP / Keysight J2914A

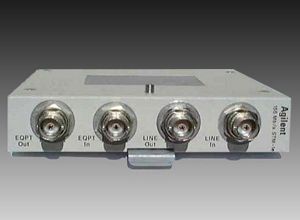

J2914A STM-1e/EC-3 Module for the Keysight Advisor
Description
This Advisor Plug In Module is a STM-1E/EC-3 module used to handle ATM at 155Mb/s (75ohm electrical interfaces) for the J2300C/D/E Adilent Advisor Mainframe (not inlcuded) and J2900A Undercradle (not included).
it is designed to interface at the intershelf 75ohm electrical connections in exchanges/central offices sensitive monitoring capability for connection at intermediate and main distribution frames (IDFs and MDFs).
It's service turn up is done with confidence prewritten tests allow for full bandwidth simulation, policing, and simultaneous monitoring for all types of ATM traffic.
Key Points
Full rate capture and analysis of Packet over SONET/SDH for IETF and Cisco HDLC variants
Isolates maintenance issues statistics and charting of network loading show peak utilization and isolate users by network layer address
Pulse amplitude measurement verifies signal levels
Accuracy when you need it 100 percent data capture and analysis at full line rate with 100ns resolution on all traffic analysis
Continuity testing pings verify connectivity and check timing of round trip delay
Easy to use interface the Windows®98 user interface lets you choose the function by pointing and clicking on an icon
Both STM-1 and STS-3c framing supported for STM-1e and EC-3 interfaces respectively
Specifications
Instrument Type: ATM-1e/EC-3 plug-in module
Resolution: 100ns
