Agilent / HP / Keysight J2905B

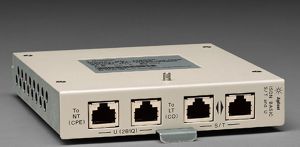

J2905B ISDN BRI S/T and U Interface Module
Description
This interface module adds ISDN BRI S/T and U interface testing to the Agilent Advisor for a fully integrated monitoring simulation, call placement and BERT solution.
Basic S/T and U ISDN problems can be quickly isolated.
With this module, the Agilent Advisor is a multi protocol, multi interface protocol analyzer that connects to the ISDN interface.
You can quickly isolate network problems using the complete, real time ISDN decodes with summary and detailed displays (including full information elements) and extensive D channel statistics.
Key Points
B-Channel BERT Testing
G.821 Results
Automatic B1 to B2 BERT
DTMF Dialing
D, B Channel Status LEDs
No M Channel Indications
No Supports Auto Answer Loop Back
D-Channel BERT
D Channel X.25 Testing
B Channel X.25 Testing
No AutoSPID Support
No Real Time D Channel Decoding
Layers 1,2&3 Display/Hide
Filters,Traps,Triggers
No DC Voltage Measurements
No Supports Parameter Downloading
Specifications
Form Factor: Module (proprietary interface/bus)
Type: Test Set
Test Interfaces: BRI S/T,U
Emulation: NT,TE
Built In Micro Phone/Speaker: No
Bearer Capability: 64k Data
