Agilent / HP / Keysight E8363A

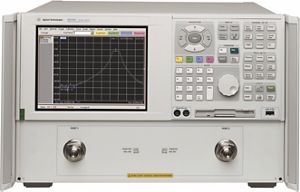

E8363A PNA Series Network Analyzer, 45 MHz to 40 GHz
Description
The Agilent E8363A vector network analyzer is discontinued as of June 2003 with an active support life until June 19, 2008.
The E8363A has been replaced by the Agilent E8363B PNA Series Network Analyzer, 10 MHz to 40 GHz
The Agilent E8363A vector network analyzer is a member of the PNA Series network analyzer platform and provides the combination of speed and precision for the demanding needs of today's high frequency, high-performance component test requirements.
The PNA Series meets these testing challenges by providing the right combination of fast sweep speeds, wide dynamic range, low trace noise and flexible connectivity.
The E8363A provides TRL/LRM calibration (four-receiver enabled) for waveguide, on-wafer, and in-fixture devices. Source attenuators, bias-tees and direct receiver access are optionally available for active device and extended dynamic range measurements.
Powerful automation and self-help tools make the instrument well suited for both R&D and manufacturing. The PNA Series feature sixteen independent measurement channels, built-in hard drive and supplied mouse.
Key Points
COM/DCOM and SCPI programming
TRL/LRM calibration supported
System Dynamic range of 123 dB at 10-20GHz
< 26 us/point sweep speed
PNAs now have 256MB RAM
