Agilent / HP / Keysight E8357A

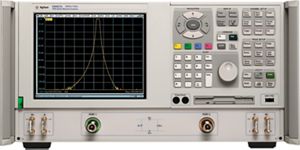

E8357A PNA Network Analyzer, 300 kHz to 6 GHz
This Analyzers is a member of the PNA Series network analyzer platform and provides the combination of speed and precision for the demanding needs of today's high performance component test requirements.
The PNA Series meets this testing challenge by providing the right combination of fast sweep speeds, wide dynamic range, low trace noise and flexible connectivity.
This unit provides TRL/LRM calibration (four receiver enabled) for in fixture and on wafer devices, standard bias tees for active devices and standard direct receiver access for extended dynamic range.
Powerful automation and self help tools make the instrument well suited for both R&D and manufacturing.
The PNA Series features sixteen independent measurement channels, built in hard drive and supplied mouse.
COM/DCOM and SCPI programming
TRL/LRM calibration supported
USB controlled electronic calibration (ECal)
Windows 2000 operating system
Frequency Range: 300KHz to 6GHz
Dynamic range: 128dB at test port
Dynamic range: 143dB with direct receiver access
Sweep speed: 35µs/point
