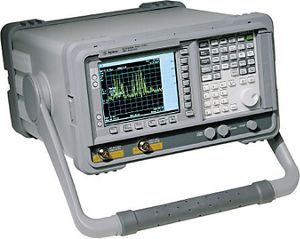

Agilent / HP / Keysight E7404A
E7404A EMC Analyzer, 30 Hz to 13.2 GHz
Description
This Analyzer provides the capabilities to check for radiated emissions coming from your DUT.
This is best done in an area that is free from reflective objects such as an open area or EMI chamber.
This unit's instrument to the power or data line through a line impedance stabilization network (LISN) device or absorbing clamp.
Key Points
Built-In Preamp
Full Color Display
Automatic Measurements
Log sweep
3.5" disk drive
5 minute warm-up
Built-in preamplifier
Optional tracking generator
Rugged, portable design
Specifications
Form Factor: Benchtop
Frequency Range: 9KHz to 13.2GHz
Input Impedance: 50ohms
Frequency Accuracy: 0.0000000002%
Amplitude Accuracy: +/-1.5dB
Span Accuracy: +/-1%
