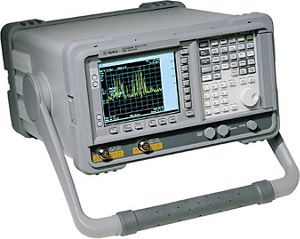

Agilent / HP / Keysight E7403A
E7403A EMC Analyzer, 30 Hz to 6.7 GHz
Description
This Analyzer provides the capabilities you need in an analyzer to make in-house EMI precompliance testing a reality
.
Radiated emissions when combined with a broadband antenna, this unit provides the capabilities to check for radiated emissions coming from your DUT.
This is best done in an area that is free from reflective objects such as an open area or EMI chamber.
Conducted emissions Test for noise or interference placed on power or data lines by coupling this instrument to the power or data line through a line impedance stabilization network (LISN) device or absorbing clamp.
Key Points
Built-In Preamp
Full Color Display
+/-1.5dB Amplitude Accuracy
+/-1% Span Accuracy
Automatic Measurements
Specifications
Form Factor: enchtop
Frequency range: 9KHz to 6.7GHz
Input Impedance: 50ohms
Frequency Accuracy: 0.0000000002%
Resolution Bandwidth: 1KHz to5MHz
Resolution Bandwidth Steps: 1/3/10
Voltage Standing Wave Ratio: 1.6:1
Maximum Safe AC Input: 30dBm
Maximum DC Input: 0V
