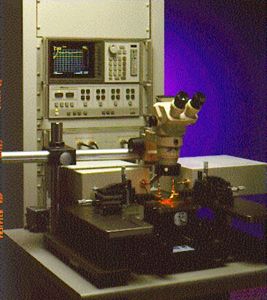

Agilent / HP / Keysight E7350A
E7350A Single Sweep NA System, 45 MHz to 110 GHz
Description
This Analyzer is an instrument which measures the complex transmission and reflection characteristics of two port devices in the frequency domain.
It does this by sampling the incident signal, separating the transmitted and reflected waves, and then performing ratios that are directly related to the reflection and transmission coefficients of the two port.
Frequency is swept to rapidly obtain amplitude and phase information over a band of frequencies of interest.
This unit utilize synthesized frequency sources to provide a known test stimulus that can sweep across a range of frequencies or power levels.
This unit also can perform ratioed measurements (including phase), which require multiple receivers.
This unit can provide a wealth of knowledge about a device under test (DUT), including its magnitude, phase, and group delay response.
Key Points
New test heads designed to measure broadband devices to 110 GHz in coax (1.0 mm) or on wafer
Full frequency calibrations supported on wafer and using a new 1.0mm coaxial calibration kit
Complete line of 1.0mm accessories: calibration kit, verification kit, adapters and port cables
Specifications
Form Factor: System
Type: Vector
Number of Receiver Channels: 1Ch
Frequency range: 2GHz to 110GHz
