Agilent / HP / Keysight E5250A

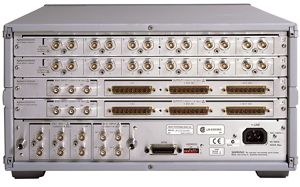

E5250A Low-leakage Switch Mainframe

Please help us customize your browsing experience, by selecting one the below.

Description

This Mainframe will expand a single measurement station to an automated measurement system. The plug-in modules can be configured as a cross-point matrix for general parametric measurements or a multiplexer for long-term reliability measurements. When it is configured as a 24 (8 x 3) Channel Multiplexer, the E5250A is ideal for long term reliability measurements with its 384 channel capability and advanced features usually found on the large input devices. This will allow inexpensive power supplies to be used for consistent stressing. The large number of channels and low-cost stress sources allow efficient testing of hundreds of devices in parallel, and will achieve accurate and consistent results.

Key Points

10 x 12 Matrix Switch for General Parametric Measurements

Sequential measurement of many devices on a test structure

Ten inputs and 48 outputs provide flexibility and accuracy

Two low-leakage inputs and four standard inputs for I-V measurements

Two C-V path with accurate capacitance compensation

Two auxiliary inputs for pulsed, differential voltage and other
measurements

24 (8 x 3) Channel Multiplexer for Reliability Testing

384-channel capability for efficient parallel testing

Inexpensive power supplied for consistent stressing

Protection against power surges for accurate results

Wide-temperature cables for use in a chamber

Specifications

10 x 12 Matrix Switch for General Parametric Measurements

Sequential measurement of many devices on a test structure

Ten inputs and 48 outputs provide flexibility and accuracy

Two low-leakage inputs and four standard inputs for I-V measurements

Two C-V path with accurate capacitance compensation

Two auxiliary inputs for pulsed, differential voltage and other
measurements

24 (8 x 3) Channel Multiplexer for Reliability Testing

384-channel capability for efficient parallel testing

Inexpensive power supplied for consistent stressing

Protection against power surges for accurate results

Wide-temperature cables for use in a chamber
