Agilent / HP / Keysight E4991A

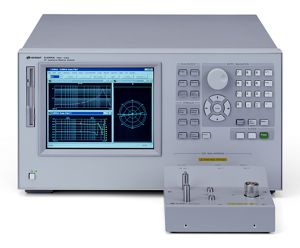

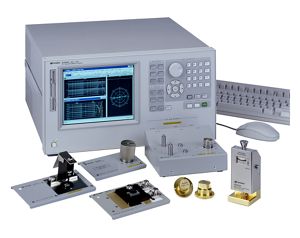

E4991A RF Impedance/Material Analyzer
Description
The E4991A RF impedance/material analyzer offers ultimate impedance measurement performance and powerful built in analysis function.
It will provide innovations in R&D of components and circuit designers who evaluate components in the range of 3 GHz. The E4991A uses an RF-IV technique, as opposed to the reflection measurement technique, for more accurate impedance measurement over wide impedance range.
Basic impedance accuracy is +/-0.8%. High Q accuracy enables low-loss component analysis. The internal synthesizer sweeps frequency from 1 MHz to 3 GHz with 1 mHz resolution.
Key Points
Excellent accuracy and repeatability
Easy evaluation of Magneto-Impedance characteristics
A wide variety of design-automation tools and functions
Oscillator level: Up to 1 dBm/0.5 Vrms/10 mArms
DC bias level (Option E4991A-001): +/- 40V or +/- 50 mA
Windows-styled user interface
Built-in VBA programming function
Data transfer through LAN interface
Specifications
Frequency
Range: 1 MHz to 3 GHz
Resolution: 1 mHz
Accuracy:
without Option E4991A-1D5:±10 ppm (23 °C ±5 °C);±20 ppm (5 °C to 40 °C)
with Option E4991A-1D5: ±1 ppm (5 °C to 40 °C)
Stability with Option E4991A-1D5: ±0.5 ppm/year (5 °C to 40 °C)(typical)
Oscillator level Range
Power (when 50 O load is connected to test port):–40 dBm to 1 dBm (frequency = 1 GHz); –40 dBm to 0 dBm (frequency > 1 GHz)
Current (when short is connected to test port): 0.0894 mArms to 10 mArms (frequency = 1 GHz); 0.0894 mArms to 8.94 mArms (frequency > 1 GHz)
Voltage (when open is connected to test port): 4.47 mVrms to 502 mVrms (frequency = 1 GHz); 4.47 mVrms to 447 mVrms (frequency > 1 GHz)
Resolution: 0.1 dB
Output impedance: 50 O (nominal)
DC voltage bias
Range: 0 to ±40 V
Resolution: 1 mV
Operating Temperature: 5 °C to 40 °C
Weight:17 kg (nominal)
