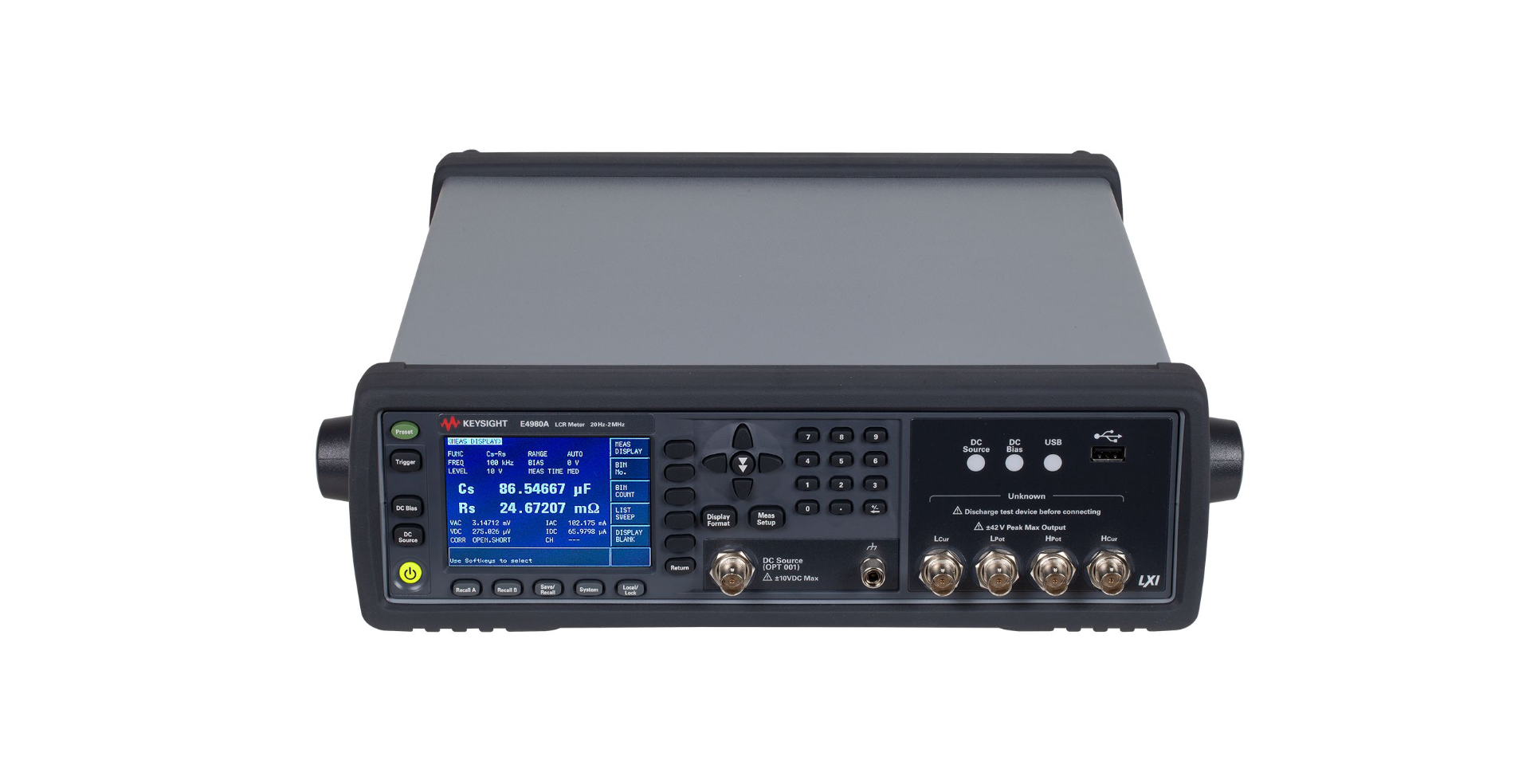

Agilent / HP / Keysight E4980A

E4980A Precision LCR Meter, 20 Hz to 2 MHz

Please help us customize your browsing experience, by selecting one the below.

Description

The E4980A precision LCR meter provides the best combination of accuracy, speed, and versatility for a wide range of component measurements. Offering fast measurement speed and outstanding performance at both low and high impedance ranges, the E4980A is the ultimate tool for general R&D and manufacturing test of components and materials. LAN, USB and GPIB PC connectivity enhances your design and test productivity.

Key Points

20 Hz to 2 MHz, with 4-digit resolution in any range
0.05% basic accuracy with superior measurement repeatability at low and high impedance
Built-in 40V DC Bias (Option 001)
40 A DC support with the option 002 and the 42841A Bias Current Source
Rdc measurements (Option 001)
20 Vrms test signal (Option 001)
High-speed measurements: 5.6 ms
201 points list sweep
Versatile PC connectivity (LAN, USB and GPIB)

Specifications

Accuracy:0.05 %
Capacitance Range:0.00001 pF to 9.99999 F
Current Range:50 uA to 20 mArms
DC Bias/ HP-IB or Other:0.01 nH - HP-IB
Frequency Range:20 Hz to 2 MHz
Impedance Range:0.01 mohm - 99.9999 Mo
Inductance Range:2 V-99999.9 H
Voltage Range:5 mV to 2 Vrms
