Agilent / HP / Keysight E4446A

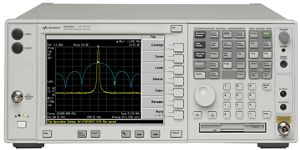

E4446A PSA Spectrum Analyzer, 3 Hz to 44 GHz
Description
This Analyzer offers high performance spectrum analysis, up to 44GHz, with powerful one button measurements, a versatile feature set, and a leading edge combination of flexibility, speed, accuracy, analysis bandwidth, and dynamic range.
From millimeter wave and phase noise measurements to spur searches and modulation analysis, the PSA Series offers unique and comprehensive high performance solutions to R&D and manufacturing engineers in cellular and emerging wireless communications, aerospace, and defense.
Key Points
All digital IF with auto ranging capability
Phase noise optimization
Full detector suite
Flexible platform with 16 optional, easy-to-use built-in measurement personalities
160 resolution bandwidth settings (10% steps)
2dB step attenuator
FFT and swept measurement modes
Gated sweep
81 dB W-CDMA ACLR dynamic range
Specifications
Dynamic Range:
-154dBm displayed average noise level (DANL)
+18dBm third order intercept (TOI)
-116dBc/Hz phase noise at 10KHz offset
Accuracy:
±0.62dB absolute amplitude accuracy
±0.38dB frequency response
±0.07dB log amplification linearity
Speed:
Fast low level spur search
<30ms fast ACP measurement
50 measurements per second local update rate
