Agilent / HP / Keysight E4445A

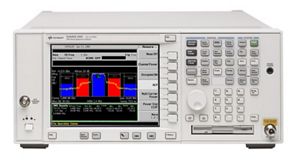

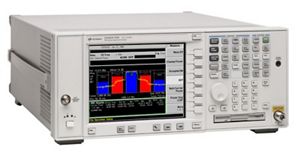

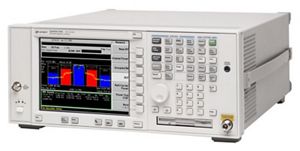

E4445A PSA Spectrum Analyzer, 3 Hz to 13.2 GHz

Please help us customize your browsing experience, by selecting one the below.

Description

The Agilent E4445A PSA high-performance spectrum analyzer measures and monitors complex RF signals up to 13.2 GHz. Typical performance @ 1 GHz: Dynamic range (-155 dBm DANL, +19 dBm TOI, -118 dBc/Hz phase noise at 10 kHz offset; Accuracy (±0.19 dB absolute amplitude accuracy, ±0.11 dB frequency response). View PSA Data Sheet 40 or 80 MHz analysis bandwidth to capture and measure complex signals. View: 40/80 MHz bandwidth digitizers online demo! Flexible platform with 16 optional, easy-to-use built-in measurement personalities

Key Points

All-digital IF with auto-ranging capability
Phase noise optimization
Full detector suite
160 resolution bandwidth settings (10% steps)
2 dB step attenuator
FFT and swept measurement modes
Gated sweep
Power Suite one-button power measurements
EMI measurements with CISPR compliant bandwidths and detectors

Specifications

Frequency range:3 Hz to 13.2 GHz
Dynamic Range:+30 dBm to -155 dBm

Input Impedance:50 ohms
Residual FM:<(1HzxN)p-p in 1 s
Resolution Bandwidth:1 Hz to 3 MHz
Video Bandwidth: 1 Hz to 3 MHz
