Agilent / HP / Keysight E4443A

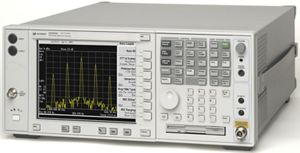

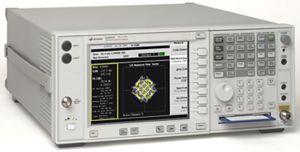

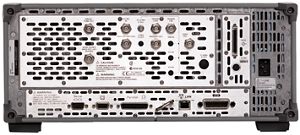

E4443A PSA Spectrum Analyzer, 3 Hz to 6.7 GHz

Please help us customize your browsing experience, by selecting one the below.

Description

This unit measures and monitors complex RF and microwave signals up to 6.7GHz.

This PSA series is designed to intuitive yet flexible.

It's phase noise optimization, swept or FFT analysis, a full suite of detector modes, 160 resolution bandwidth settings and a 2dB step attenuator gives you ultimate control over your measurements.

Key Points

All-digital IF with auto-ranging capability
Phase noise optimization
Full detector suite
160 resolution bandwidth settings (10% steps)
2 dB step attenuator
FFT and swept measurement modes
Gated sweep
Power Suite one-button power measurements
EMI measurements with CISPR compliant bandwidths and detectors

Specifications

Frequency range:
DC coupled: Hz to 6.7 GHz
AC coupled:20 MHz to 6.7 GHz
Frequency span (FFT and swept mode):
Range:0 Hz (zero span), 10 Hz to maximum frequency of model
Resolution:2 Hz
Sweep time and triggering:
Range:
Span = 0 Hz:1 μs to 6000 s
Span ≥ 10 Hz:1 ms to 2000 s
Gated sweep:
Gate length:10 μs to 500 ms
Gate delay range:0 to 500 ms
Gate delay jitter:33.3 ns p-p nominal
Gated FFT:
Delay range:–150 to +500 ms
Delay resolution:100 ns or 4 digits whichever is more
Gate duration:1.83/RBW ± 2% nominal
Resolution bandwidth (RBW):
Range (–3.01 dB bandwidth):1 Hz to 3 MHz (10% steps), 4, 5, 6, 8 MHz
Bandwidth accuracy (–3.01 dB) RBW range:1 Hz to 1.5 MHz
Video bandwidth (VBW):
Range:1 Hz to 3 MHz (10% steps), 4, 5, 6, 8 MHz and wide open
Accuracy:±6% nominal
Weight (without options):33 kg (73 lbs) nominal
