Agilent / HP / Keysight E4356A

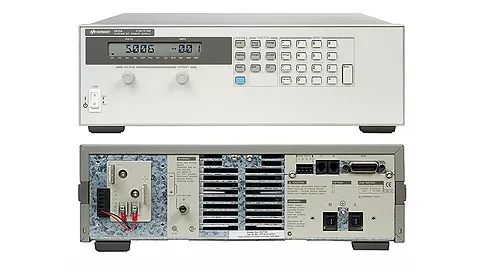

E4356A Telecom DC Power Supply, 70V, 30A and 80V, 26A

Please help us customize your browsing experience, by selecting one the below.

Description

This Power Supply is ideal for manufacturing and R&D engineers who build equipment for the telecom industry that operates from a 48V or higher DC rail. This telecom equipment includes: base stations, switches, public and private telephone network equipment, PBX systems, and DC/DC power supplies that provide power to this equipment. This unit provides power at up to 80VDC and up to 30A in two ranges (80V, 26A or 70V, 30A), has low output noise and offers full control and measurement over GPIB using a SCPI command set.

Key Points

Low ripple and noise

Fast up and down programming speed

Full remote programming and sensing over GPIB

SCPI command set

Complete control, calibration and display via front panel

Specifications

Output Voltage: 0 to 70V, 0 to 80V

Output Current: 0 to 30A, 0 to 26A

Output Maximum Power: 2100W

Voltage Accuracy: 0.04% + 80mV

Current Accuracy: 0.1% + 25mA
