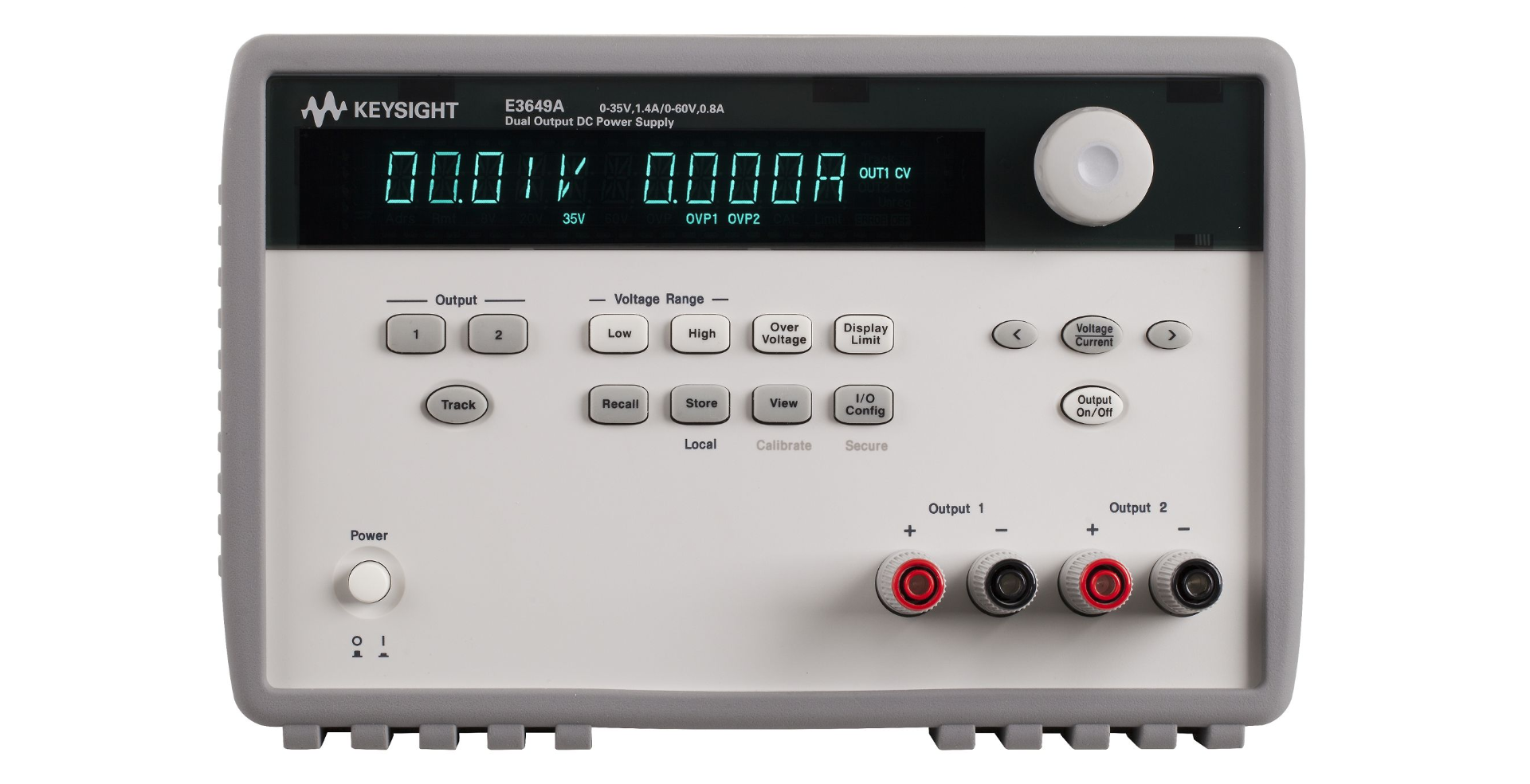

Agilent / HP / Keysight E3649A

E3649A 100W Dual-Output Power Supply, Two 35 V, 1.4 A or 60 V, 0.8 A

Please help us customize your browsing experience, by selecting one the below.

Description

This unit supplies will offer essential features for a small budget. The single & dual output, 30-100W GPIB E3640 series provide a small, compact size for bench and system use; low output ripple and noise; and built in measurements and basic programmable features with GPIB and RS232 interface. The Agilent 97W, multiple output of this unit is a power supply for general purpose applications, and to combine convenient benchtop capabilities with a flexible system feature in a compact, multi output package.

Key Points

100W dual output, dual range

Built in GPIB and RS-232

SCPI compatible

Over voltage protection and remote sensing

Low noise and excellent regulation

Front and rear output terminals

Specifications

<

p>Normal Mode Current: <4mArms

Common Mode Current: <1.5uArms

Form Factor: Benchtop

Number of Outputs: 2o/p

Maximum power: 100Watts

Maximum Current: 1.4A (0V to 35V)

Transient Response Time: 50us

Programming Response Time: 90ms
