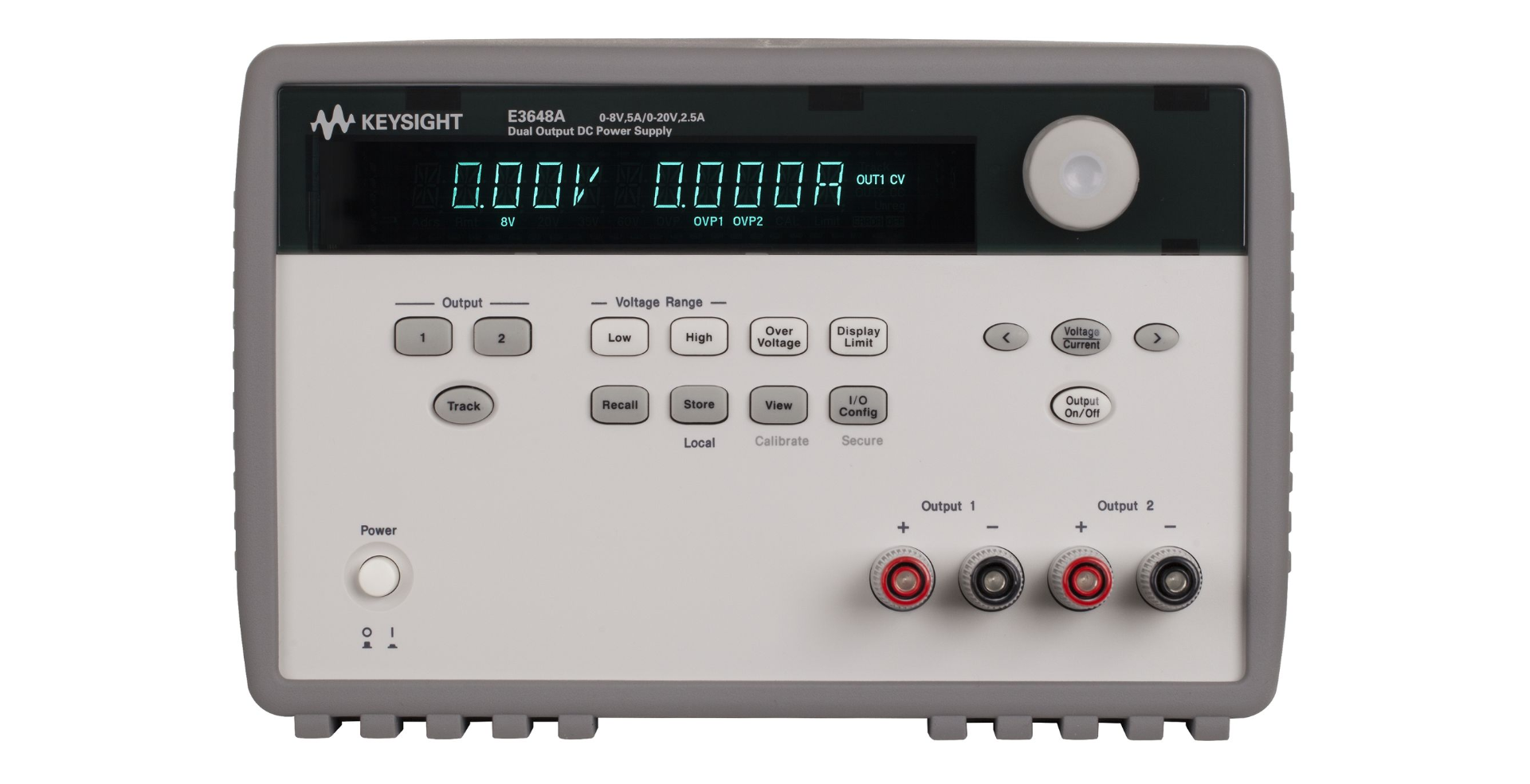

Agilent / HP / Keysight E3648A

E3648A 100W Dual Output Power Supply Two 8V, 5A or 20V, 2.5A

Note: Federal Resellers: We Do Not Sell New Equipment
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

This unit is a clean, 90W, multiple output, reliable power supply for general purpose applications, and combine convenient benchtop capabilities with flexible system features in a compact, multi-output package.

Key Points

100 W dual output, dual range

Built-in GPIB and RS-232

SCPI compatible

Over-voltage protection and remote sensing

Low noise and excellent regulation

Front and rear output terminals

Specifications

Output Ratings (@ 0°C to 40°C) 2 Outputs:
Range 1: 0 to 8V / 5A
Range 2: 0 to 20V / 2.5A

Programming Accuracy (@ 25°C ±5°C), ±(% output + offset):
Voltage: <0.05% + 10mV (<0.1% + 25mV for output 2 of E3646/47/48/49A)
Current: <0.2% + 10mA

Ripple & Noise 20Hz to 20MHz
Normal Mode Voltage: <5mVpp / 0.5mVrms
Normal Mode Current: <4mArms
Common Mode Current: <1.5uArms

Readback Accuracy (@ 25°C ±5°C), ±(% output + offset):
Voltage: <0.05% + 5mV (<0.1% + 25mV for output 2 of E3646/47/48/49A)
Current: <0.15% + 5mA (<0.15% + 10mA for output 2 of E3646/47/48/49A)
