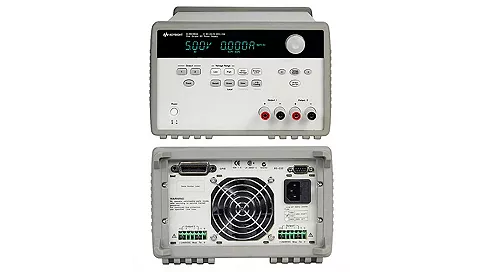

Agilent / HP / Keysight E3646A

E3646A 60 W Dual Output Power Supply 8 V, 3 A, or 20 V, 1.5 A

Please help us customize your browsing experience, by selecting one the below.

Description

This unit provides a small, compact size for bench and system use; low output ripple and noise; and built-in measurements and basic programmable features. This 54W, multiple output is a clean, reliable power supply for general purpose applications, and combine convenient benchtop capabilities with flexible system features in a compact, multi-output package.

Key Points

Line Regulation: 0.0003A

Load Regulation: V/C 0.002V - 0.0003

Other Features: 0.002V

Output 1,Volts/ Max. Current: 8V - 3A

Output 2,Volts/ Max. Current: 20V - 1.5A

Total Power: 60W

Type: DC

Specifications

Output Ratings (@ 0°C to 40°C) 2 Outputs:
Range 1: 0 to 8V / 3A
Range 2: 0 to 20V / 1.5A

Programming Accuracy (@ 25°C ±5°C), ±(% output + offset):
Voltage: <0.05% + 10mV (<0.1% + 25mV for output 2 of E3646/47/48/49A)
Current: <0.2% + 10mA

Ripple & Noise 20Hz to 20MHz:
Normal Mode Voltage: <5mVpp / 0.5mVrms
Normal Mode Current: <4mArms
Common Mode Current: <1.5uArms

Readback Accuracy (@ 25°C ±5°C), ±(% output + offset):
Voltage: <0.05% + 5mV (<0.1% + 25mV for output 2 of E3646/47/48/49A)
Current: <0.15% + 5mA (<0.15% + 10mA for output 2 of E3646/47/48/49A)
