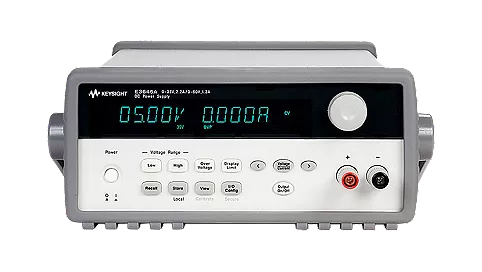

Agilent / HP / Keysight E3645A

E3645A 80 W Power Supply 35 V, 1.3 A or 60 V, 2.2 A

Please help us customize your browsing experience, by selecting one the below.

Description

This unit provides small, compact size for bench and system use; low output ripple and noise; and built-in measurements and basic programmable features. Its single output is a stable and reliable power supply for benchtop and basic automated test applications, and enables versatile solutions for tests that require moderate speed and precision with both GPIB and RS232.

Key Points

Single and Dual Output

Dual Output Ranges

30W to 100W Output Power

Front and Rear Output Terminals

Over-voltage Protection

Remote Sense

GPIB and RS-232 Standard

Specifications

Output Ratings (@ 0°C to 40°C):
Range 1: 0 to 35V / 2.2A
Range 2: 0 to 60V / 1.3A

Programming Accuracy (@ 25°C ±5°C), ±(% output + offset):
Voltage: <0.05% + 10mV (<0.1% + 25mV for output 2 of E3646/47/48/49A)
Current: <0.2% + 10mA

Ripple & Noise 20Hz to 20MHz
Normal Mode Voltage: <8mVpp / 1mVrms
Normal Mode Current: <4mArms
Common Mode Current: <1.5uArms

Readback Accuracy (@ 25°C ±5°C), ±(% output + offset)
Voltage: <0.05% + 5mV (<0.1% + 25mV for output 2 of E3646/47/48/49A)
Current: <0.15% + 5mA (<0.15% + 10mA for output 2 of E3646/47/48/49A)
