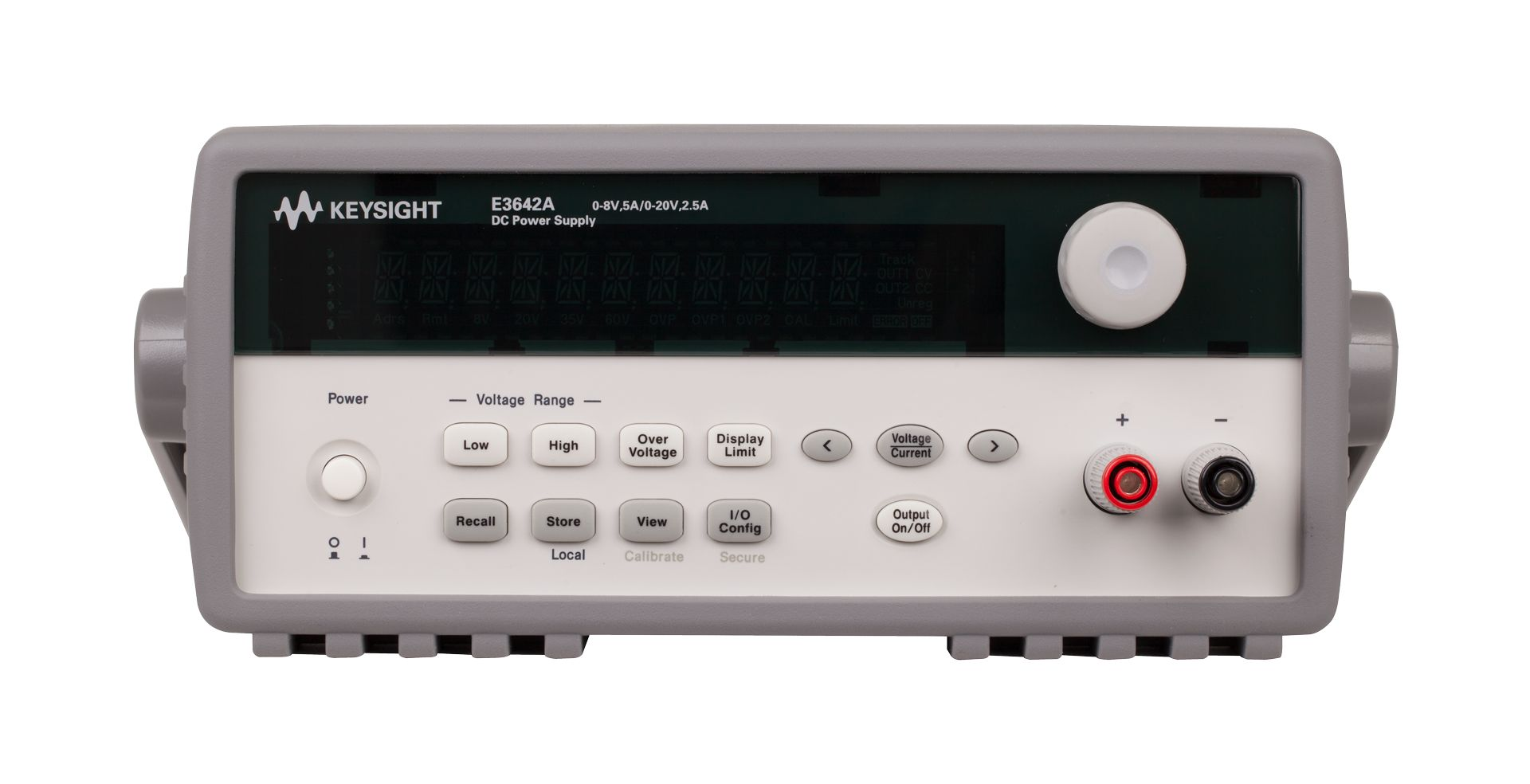

Agilent / HP / Keysight E3642A

E3642A 50 W Power Supply, 8 V, 5 A or 20 V, 2.5 A

Note: Federal Resellers: We Do Not Sell New Equipment
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

This unit is a 50 watt single output programmable power supply that features a built in GPIB and RS-232 connectivity and SCPI language compatibility making it easy to create flexible power programs. For general purpose use, this programmable power supply offers the performance of a system power supply.

Key Points

30W Single Output, dual Range

SCPI Compatible

Low Noise And Excellent regulation

Front & Rear Output Terminals

Highly Visible Vacuum flourescent displa

Rear output and sense terminals

Remote Sensing: 1V

Specifications

Output Ratings (@ 0°C to 40°C):
Range 1: 0 to 8V / 5A
Range 2: 0 to 20V / 2.5A

Programming Accuracy (@ 25°C ±5°C), ±(% output + offset):
Voltage: <0.05% + 10mV (<0.1% + 25mV for output 2 of E3646/47/48/49A)
Current: <0.2% + 10mA

Ripple & Noise: 20Hz to 20MHz
Normal Mode Voltage: <5mVpp / 0.5mVrms
Normal Mode Current: <4mArms
Common Mode Current: <1.5uArms

Readback Accuracy (@ 25°C ±5°C), ±(% output + offset):
Voltage: <0.05% + 5mV (<0.1% + 25mV for output 2 of E3646/47/48/49A)
Current: <0.15% + 5mA (<0.15% + 10mA for output 2 of E3646/47/48/49A)
