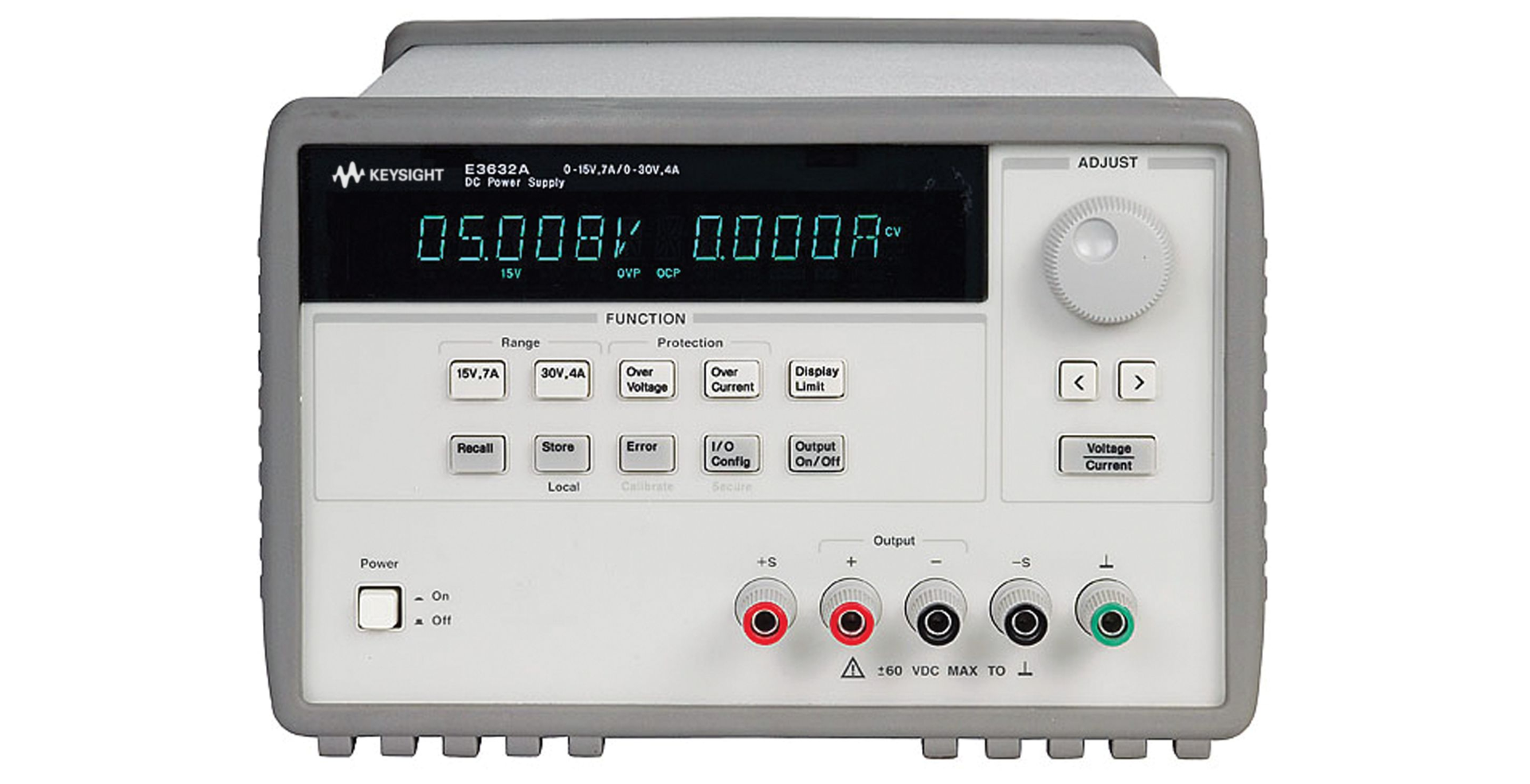

Agilent / HP / Keysight E3632A
E3632A 120W Power Supply, 15V, 7A or 30V, 4A
The Agilent / HP E3632A programmable DC power supply gives performance of system power supplies without the high price.
The Agilent / HP E3632A power supply gives you clean power, dependable regulation and fast transient response with built-in GPIB and RS-232 interface.
The HP E3632A DC power supply is designed to meet the most demanding applications in R&D design verifications, production testing, and QA verifications with traditional HP quality and reliability you can count on.
The E3632A power supply specifies both normal mode voltage noise and common mode current noise. The low normal mode noise specification assures clean power for precision circuitry applications and the low common mode current provides isolation from power line current injection.
The E3632A power supply comes equipped with both GPIB and RS-232 as standard. All programming is done in easy to use SCPI (Standard Commands for Programmable Instruments).
A knob and self-guiding keypads allow setting the output at the resolution needed for the most exacting adjustments quickly and easily.
The Agilent / HP E3632A allows storing up to three complete setups and recalling from the internal nonvolatile memory. The output on/off button sets the output to zero.
The Agilent / HP E3632A single output power supply gives the flexibility to select from dual output ranges. Output load is protected against overvoltage and overcurrent, which are easily monitored and adjusted from the front panel and remote interface.
This 120W, GPIB, single output unit is a high performance supply optimized for manual and basic automated testing; and, with a combination of benchtop capabilities and system features, it is designed to help improve measurement quality and reduce test time.
105W / 120W single output dual range
Low noise and excellent regulation
GPIB, RS-232 standard
Remote sense, OVP and OCP
Output Ratings: Range 1: 0 to 15V, 7A; Range 2: 0 to 30V, 4A
Programming Accuracy at 25 ± 5 deg C: Voltage: 0.05% + 10 mV; Current: 0.2% +10 mA
p>Ripple & Noise (20Hz to 20MHz): Normal-mode voltage: <350 µ Vrms/2 m Vpp; Normal-mode current: <2 mA rms; Common-mode current: <1.5µA rms
Readback Accuracy at 25 ± 5 deg C: Voltage: 0.05% + 5 mV; Current: 0.15% + 5 mA
AC Input: 100 Vac ± 10% (Opt 0E9) / 115 Vac + 10% (Std) / 230 Vac ± 10% (Opt 0E3)
Dimension: 213 mm W x 133 mm H x 348 mm D
Net Weight: 9.5 kg (21 lbs)
