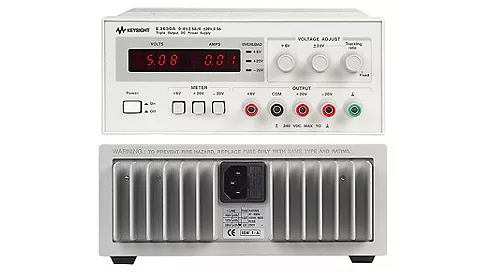

Agilent / HP / Keysight E3630A
E3630A 35 W Triple Output, 6V, 2.5A and ±20V, 0.5A
Description
The Agilent / HP 3630A belongs to E3600 family of DC power supplies. All the members of this family give clean power with dependable regulation and fast transient response. With multiple supplies in a compact unit, the Agilent E3630A gives excellent performance while saving space on your bench. The 35-watt E3630A triple-output power supply provides three dc outputs: 0 to 6 V with a maximum current of 1 to 2.5A and 0 to 20 V and 0 to -20 V with a maximum current of 0.5A. An autotracking feature of 3630A lets using one voltage control to adjust the +20 V and -20 V outputs simultaneously. The outputs track each other to within 1 percent, making it easy to adjust the power supply for circuits requiring balanced voltages. The Agilent 3630A dc power supply features tight 0.01 percent line and load regulation and a low normal-mode noise specification of less than 0.35mV to ensure clean power for precision circuitry. With a common-mode current specification of less than 1uA, the Agilent 3630A multi output power supply minimizes power line current injection. Like the single-output models in the Agilent E3600 series, the E3630A features separate digital panel meters which enables monitoring voltage and current simultaneously. The Agilent 3630A also protects DUT against overload and short-circuit damage. Smooth turn-on and turn-off transitions keep power spikes out of your circuits. It has three versatile outputs for benchtop applications; and is offers stable and reliable power plus essential features for manual testing.
Key Points
35W triple output
Constant voltage (CV) and Current limit (CL) modes (±20V)
Constant voltage (CV) and Current foldback (CF) modes (+6V)
Low noise and excellent regulation
Digital voltage and current meters
Output tracking
Specifications
Output Ratings (Maximum current is derated 3.3% per °C from 40°C to 55°C):
Output 1: 0 to 6V, 0 to 2.5A
Output 2: 0 to +20V, 0 to 0.5A
Output 3: 0 to -20V, 0 to 0.5A
Power (max): 35W
Ripple & Noise from 20Hz to 20MHz
Normal Mode Voltage rms: 350µV
Peak-to-Peak: 1.5mV
Load & Line Regulation
0.01% + 2mV
Meter Resolution
Voltage: 10mV
Current: 10mA
