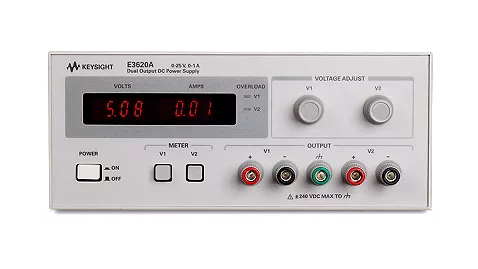

Agilent / HP / Keysight E3620A
E3620A 50W Dual Output Power Supply, Two 25 V, 1 A
Description
The Agilent / HP E3620A belongs to E3600 family of DC power supplies. All the members of this family give clean power with dependable regulation and fast transient response. With multiple supplies in a compact unit, the Agilent E3620A gives excellent performance while saving space on your bench. The 50-watt Agilent E3620A dual-output power supply provides two 0 V to 25 Vdc outputs to satisfy most bench requirements. The outputs are completely independent and isolated. The Agilent E3620 provides tight 0.01 percent line and load regulation and a low normal-mode noise specification of less than 0.35mV to ensure clean power for precision circuitry. With a common-mode current specification of less than 1uA, the E3620A multiple-output power supply minimizes power line current injection. The E3620A features separate digital panel meters so you can monitor voltage and current simultaneously. The Agilent E3620A protects DUT against overload and short-circuit damage. Smooth turn-on and turn-off transitions keep power spikes out of your circuits.
Key Points
Linear power supply
Dual Output
10-turn voltage and current controls
Digital voltage and current meters
Low noise and excellent regulation
Rated 0 to 25V @ 1A and 0 to -25V @ 1A
Tight regulation (around 0.01%)
<
p>Fast transient response (<50 micro sec)
Specifications
Line Regulation: 2 isolated
Load Regulation: V/C 2mV
Other Features: 2.5mV - 10-turn po
Output 1,Volts/ Max. Current: 25V - 1A
Output 2,Volts/ Max. Current: 25V - 1A
Total Power: 50W
Type: DC - Dual Out
Size: 91 mm H x 213 mm W x 373 mm D
Weight: 5.5 kg (12.1 lb.) net, 6.75 kg (14.9 lbs) shipping
