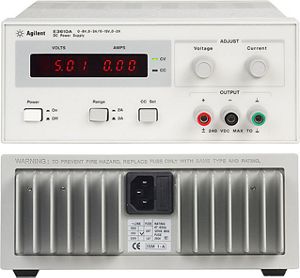

Agilent / HP / Keysight E3616A
E3616A 60W Power Supply, 35V, 1.7A
Description
This is a basic DC power supply that has essential features for a small budget.
The single output, 30-60W, E3610A-E3617A can provide a small, compact size for bench use, it can provide low-noise and excellent regulation, also dual-range outputs (E3610A/11A/12A).
It is a reliable and convenient power for benchtop use, and will deliver a solid performance and a variety of basic and enhanced capabilities.
Key Points
Output Ratings (Maximum current is derated 1% per °C between 40° to 55°C)
Range 1: 0 to 35V, 0 to 1.7A
Range 2: NA
Power (max): 60W
Ripple & Noise from 20Hz to 20MHz
Voltage rms: 200µV
Peak-to-Peak: 1mV
Load & Line Regulation
0.01% + 2mV
Meter Resolution
Voltage: 10mV (0-20V), 100mV (>20V)
Current: 1mA
Specifications
Output Ratings (Maximum current is derated 1% per °C between 40° to 55°C)
Range 1: 0 to 35V, 0 to 1.7A
Range 2: NA
Power (max): 60W
Ripple & Noise from 20Hz to 20MHz
Voltage rms: 200µV
Peak-to-Peak: 1mV
Load & Line Regulation
0.01% + 2mV
Meter Resolution
Voltage: 10mV (0-20V), 100mV (>20V)
Current: 1mA
