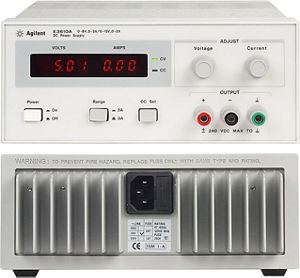

Agilent / HP / Keysight E3610A
E3610A 30W Power Supply, 8V, 3A or 15V, 2A
The Agilent / HP E3610A belongs to E3600 family of DC power supplies. All the members of this family give clean power with dependable regulation and fast transient response.
With multiple supplies in a compact unit, the Agilent E3610A gives excellent performance while saving space on your bench.
The Agilent / HP E3610A single-output power supply features separate digital-panel meters for monitoring voltage and current simultaneously.
The E3610A also features 10-turn potentiometers for accurate adjustment of voltage and current output settings.
With 0.01 percent load and line regulation, the E3610A keeps the output steady when power line and load changes occur. The low normal-mode noise specification of less than 200 micro Vrms ensures clean power for precision circuitry.
In the Agilent E3610A, either the positive or negative terminal can be connected to ground, providing a positive or negative voltage output. Outputs can also be floated up to 240V from ground.
The E3610A provides adjustable current limits, letting you set the safest current limit without having to short the output.
The popular E3610A 30-watt bench supply is designed for general laboratory use. The constant voltage, constant-current output allows operation as either a voltage or current source. The changeover occurs automatically, based on the load.
The E3610A has two ranges, allowing more current at a lower voltage. For higher output voltages, supplies can be connected in series.
The Agilent E3610A protects DUT against overload and short-circuit damage. Smooth turn-on and turn-off transitions keep power spikes out of your circuits.
Linear power supply
10-turn voltage and current controls
Digital voltage and current meters
Low noise and excellent regulation
Output Ratings (Maximum current is derated 1% per deg C between 40 to 55 deg C): Range 1: 0 to 8V, 0 to 3A, Range 2: 0 to 15V, 0 to 2A
Power (max): 30W
Ripple & Noise from 20 Hz to 20 MHz: Voltage rms: 200 micro V, Peak-to-Peak: 2 mV
Load & Line Regulation: 0.01% + 2 mV
Meter Resolution: Voltage: 10 mV, Current: 10 mA
Size: 91 mm H x 213 mm W x 319 mm D
Weight: 3.8 kg (8.4 lb.) net, 5.1 kg (11.3 lbs) shipping
