Agilent / HP / Keysight E1442A

E1442A 64-Channel Form C or Form A Switch

Please help us customize your browsing experience, by selecting one the below.

Description

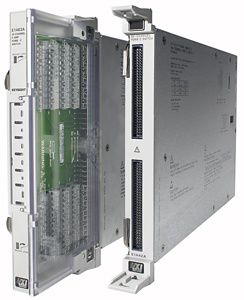

This Switch is a C size, 1 slot, register-based VXI module that contains nonlatching Form C type relays.

They can be used for device actuation, as digital output modules, or to create flexible signal switching topologies.

Each product has two parts a component card containing the relays, that plugs into the mainframe, and a removable terminal block that plugs onto the component card.

The component card has 64 Form C relays with three independent axial component locations per relay.

These locations can be used for jumpers, fuses, or pullup/down and protection resistors.

All three relay terminals can be connected through such components to one of three internal buses.

Key Points

1 Slot, C size, register based

Any combination of channels can be closed or opened

Nonlatching armature relays

External devices can be actuated

Includes QUIC easy to use terminal block

Internal buses simplify wiring

Specifications

Form Factor: Module

Type: General Purpose

Number of Channels: 64

Switching Time: 13ms

Switchable Voltage: 150V

Switchable Current: 1A

Switchable Power: 40Watts

Bandwidth range: 10kHz to 10MHz
