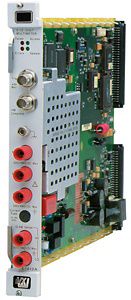

Agilent / HP / Keysight E1412A
E1412A 6.5-Digit High-Accuracy Multimeter C-Size
Description
This unit is a C-size, 1-slot, message-based VXI module.
It delivers the widest functionality in the DMM line.
It also provides high performance and high quality at prices you'd expect to pay for a 5.5-digit DMM.
This unit's wide product functionality includes volts, amps, ohms, and frequency with advanced tests including limit checks to drive a TTL output and DC voltage ratios.
Standard measurements include AC/DC voltage, AC/DC current, 2- & 4-wire Ω, plus frequency/period. When measuring dcV, this multimeter can deliver 65 range changes/sec and 30 function changes/sec.
Key Points
1-Slot, C-size, message based
DCV, ACV, DCI, ACI, 2/4-wire ohm, frequency, period
NULL, MIN/MAX, LIMIT, dB, dBm
1000 reading/s into internal memory at 4.5 digits
Fast range/function changes
Reading storage with internal memory
Specifications
AC Current 1A - 3A
AC Voltage Range 100mV - 300V
DC Current 10mA - 3A
DC Voltage Range 100mV - 300V
Frequency Range 3Hz - 300KHz
Number of Digits 6.5
Resistance Range 100ohm - 100Mohm
