Agilent / HP / Keysight DSO81304B

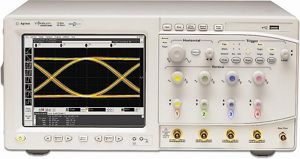

DSO81304B Discontinued Infiniium High Performance Oscilloscope: 13 GHz
Description

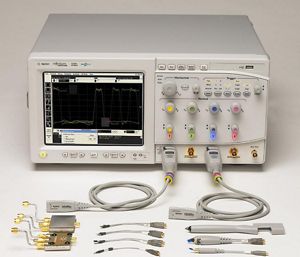

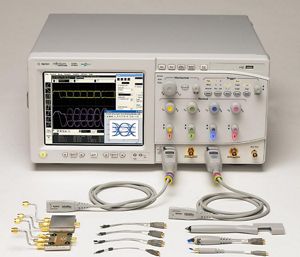

This oscilloscope combined with the InfiniiMax II probing solution offers several key signal integrity advantages including a low noise floor, low jitter measurement floor, low trigger jitter, flat combined frequency response of scope and probe and more.
These foundational capabilities are crucial for achieving accurate and repeatable measurements.
These signal integrity capabilities come from Agilent's RF design experience, proprietary packaging technologies and unique CMOS ADC architecture.
Superior signal integrity maximizes engineer's design margins by not wasting any measurement accuracy due to the poor noise, jitter or frequency response of the scope or probing system.
Key Points
13GHz bandwidth real time oscilloscope with up to 40GSa/s sample rate
System bandwidth of 13GHz (typical) with InfiniiMax II 1169A probing system
Trigger jitter less than 500fs rms
Industry's largest sets of software applications

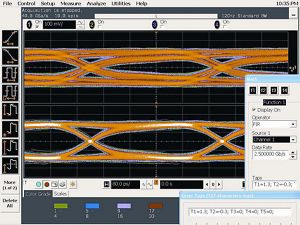

XGA touch screen display with 256 level intensity grading
Specifications
Frequency Range/ Bandwidth: 13GHz
Vertical Sensitivity: 1V/div to 1mV/div
Number of Channels: 4Ch
Record Length: 1Mpts to 128Mpts
Sample Rate: 20GSa/s per channel, 40GSa/s on two channel
Type (D/A): Digital
