Agilent / HP / Keysight DSO8064A

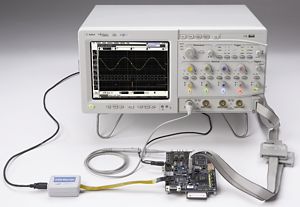

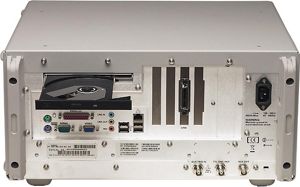

DSO8064A Infiniium Oscilloscope: 600 MHz, 4 channels
Description
Gain superior insight into analog, digital, or serial design challenges. The Infiniium MS-Windows ®-based DSO8064A provides unmatched acquisition performance with up to 128 Mpts of deep memory mapped to a high-definition display, powered by MegaZoom technology.
Key Points
600 MHz bandwidth
4 GSa/s sample rate
Up to 128 Mpts of industry-leading deep memory, also available as after-purchase upgrades
Extensive suite application analysis software
Unrivaled InfiniiMax active probes and accessories
Award-winning usability
Standard touch screen display
Open Windows® XP Pro operating system
High-performance CPU system for faster processing
I2C and SPI decode option
CAN serial decode option

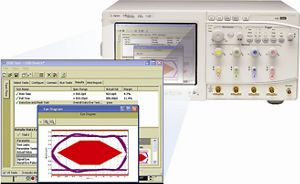

USB and Ethernet compliance software options
#Next-generation MegaZoom technology:
Fastest, most responsive deep memory
Highest-definition display with XGA resolution
Third-dimensional viewing with 256 color intensity grades
Specifications
Vertical: scope channels:
Input channels:4 analog
Analog bandwidth @ 50 ohm (–3 dB):600 MHz
Calculated rise time @ 50 ohm:350 ps
Input impedance: 1 Mohm ± 1% (13 pF typical), 50 ohm ± 1.5%
Sensitivity:1 mV/div to 5 V/div (1 Mohm),1 mV/div to 1 V/div (50 ohm)
Input coupling:1 Mohm: AC, DC; 50 ohm:DC
Hardware bandwidth limit:20 MHz
Vertical resolution: 8 bits, >=12 bits with averaging
Dynamic range:± 8 div from center screen (1 Mohm), ± 12 div from center screen (50 ohm)
Horizontal:
Main time base range:500 ps/div to 20 s/div
Horizontal position range:0 to ± 200 s
Delayed sweep range:1 ps/div to current main time base setting
Resolution:4 ps
Timebase accuracy:15 ppm (±0.0015%)
General characteristics:
Power:100-240 VAC, ± 10%, Cat II, 47 to 440 Hz; Max power dissipated: 390 W
Weight Net: 13.4 kg (29.5 lbs.)
Dimensions (excluding handle):Height: 216 mm (8.5 in); width: 437 mm (17.19 in); depth: 440 mm (17.34 in)
Temperature:
Operating:0°C to + 50°C
Non-operating:–40°C to + 70°C
