Agilent / HP / Keysight DSO80404B

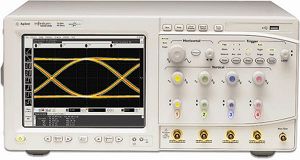

DSO80404B Infiniium High Performance Oscilloscope: 4 GHz
Description
This oscilloscope will lead to improved measurements and increased design margins.
This unit include the industry´s lowest noise floor, lowest jitter measurement floor, lowest trigger jitter, flattest combined frequency response of scope and probe and more.
Superior signal integrity maximizes engineer´s design margins by not wasting any measurement accuracy due to the poor noise, jitter or frequency response of the scope or probing system.
This unit is designed to provide critical capabilities for achieving accurate and repeatable measurements.
Key Points
4GHz bandwidth real time oscilloscope with up to 40GSa/s sample rate
System bandwidth of 4GHz with InfiniiMax 1132A probing system
Industry's lowest noise floor of 188uV @ 5mV/div
Trigger jitter less than 500fs rms

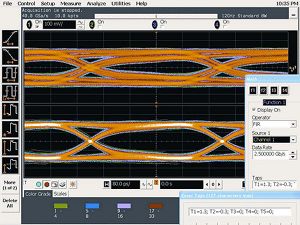

Industry's largest sets of software applications
XGA touch screen display with 256 level intensity grading
Fully upgradeable bandwidth Details

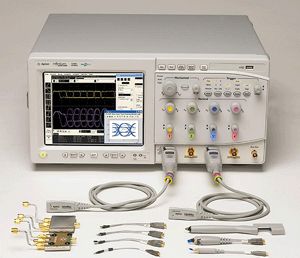

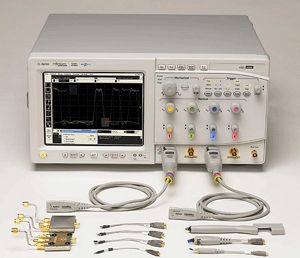

Unrivaled InfiniiMax probing accessories support browsing, solder in, socketed, and SMA use models
Specifications
Frequency Range/ Bandwith: 4GHz
Vertical Sensitivity: 1V/div to 1mV/div
Number of Channels: 4Ch
Record Length: 1Mpts to 128Mpts
Sample Rate: 20GSa/s to 40GSa/s
Type (D/A): Digital
