Agilent / HP / Keysight DSO6034A

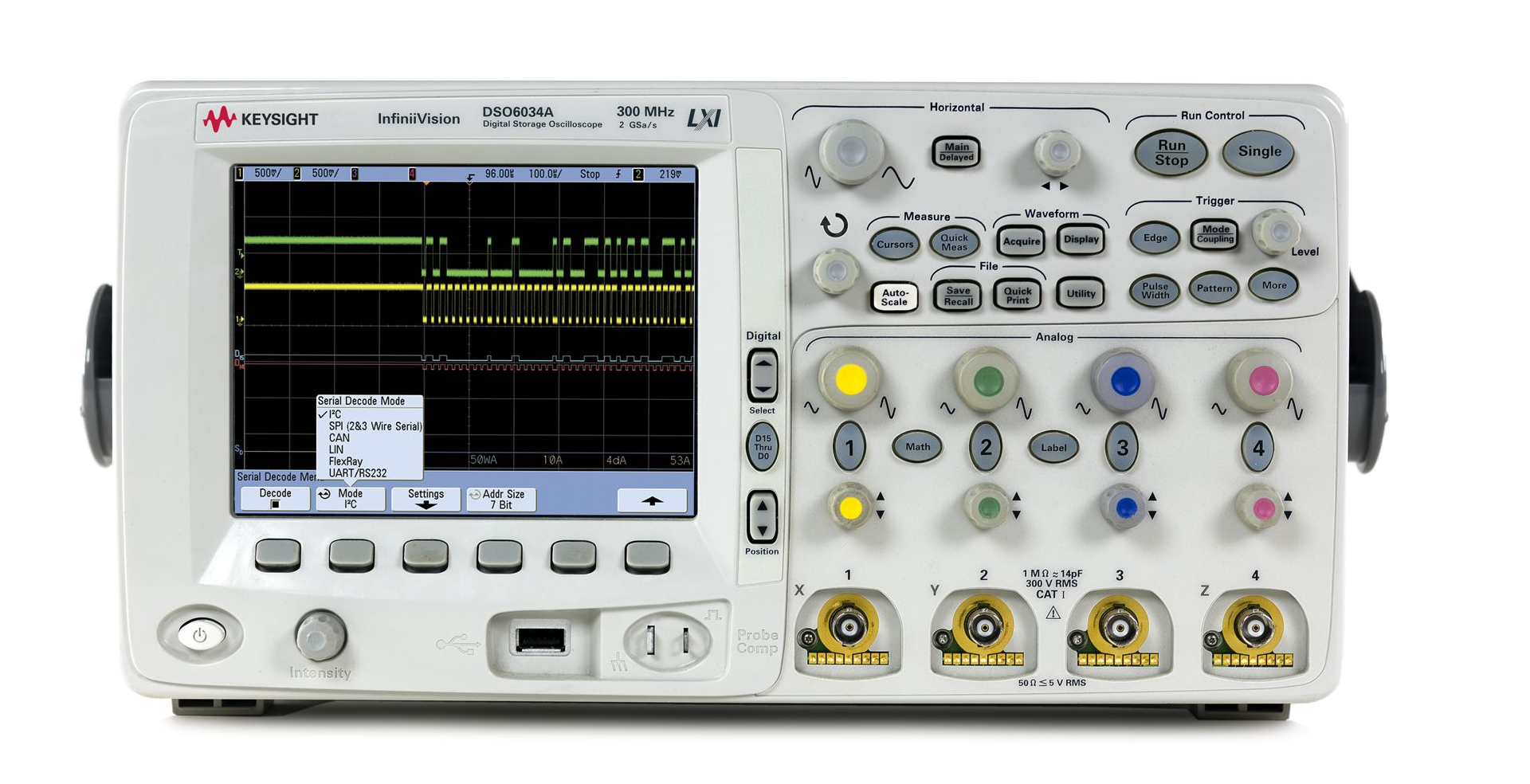

DSO6034A Oscilloscope: 300 MHz, 4 Analog Channels

Please help us customize your browsing experience, by selecting one the below.

Description

Gain superior insight into analog, digital, or serial design challenges. The DSO6034A oscilloscope offers MegaZoom III deep memory, the highest definition color display with 256 levels of intensity and the fastest uncompromised update rate of 100,000 waveforms/sec of any scopes in its class.

Key Points

Lab scope performance at a portable scope price:
300 MHz Bandwidth
4 analog channels
2 GSa/s sample rate
Standard 8 Mpts MegaZoom III deep memory

The Fastest Way to Debug your design:
Fastest update rate in the industry at 100,000 waveforms/sec
Digital debug for FPGAs

Specifications

Vertical system (scope channels):
Scope channels:Ch 1, 2, 3 and 4 simultaneous acquisition
Bandwidth (–3dB):DC to 300 MHz
AC coupled:3.5 Hz to 300 MHz
Calculated rise time (=0.35/bandwidth):1.17 nsec
Single-shot bandwidth:300 MHz
Range:2 mV/div to 5 V/div (1 MΩ or 50 Ω)
Dynamic range:±8 div
Input impedance:1 MΩ ± 1% || 14 pF or 50 Ω ± 1.5%, selectable
Coupling:AC, DC

Horizontal:
Range:2 nsec/div to 50 sec/div
Resolution:2.5 psec
Time scale accuracy:≤ ± (15 + 2(instrument age in years)) ppm

Trigger system:
Sources:Ch 1, 2, 3, 4, line, ext, D15 - D0
Modes:Auto, Normal (triggered), single
Holdoff time:~60 ns to 10 seconds

Display system:
Display:6.3-inch (161 mm) diagonal color TFT LCD
Throughput of scope channels:Up to 100,000 waveforms/sec in real-time mode
Resolution:XGA – 768 vertical by 1024 horizontal points (screen area);640 vertical by 1000 horizontal points (waveform area), 256 levels of intensity scale

General characteristics:
Physical size:35.4 cm wide x 18.8 cm high x 28.2 cm deep (without handle); 39.9 cm wide x 18.8 cm high x 28.2 cm deep (with handle)
Weight:4.9 kgs (10.8 lbs)
