Agilent / HP / Keysight DSO3202A

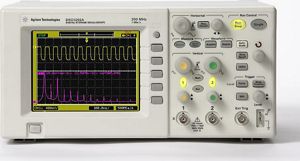

DSO3202A Oscilloscope, 200 MHz

Note: Federal Resellers, We Do Not Sell New Equipment.
  • 90 Day Warranty Included
  • 21 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

This unit gives you the debugging power you need, each oscilloscope comes standard with advanced features including sophisticated triggering, automatic measurements, digital filtering, sequence mode acquisition, math functions (including FFTs), stored setups and waveforms, mask testing and much more.

Key Points

200MHz Bandwidth

2 channels

4kpts memory depth

1GSa/s sample rate

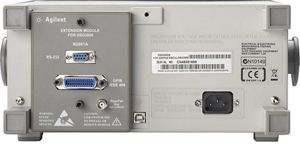

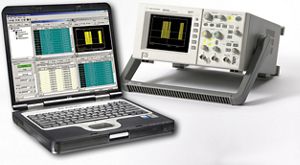

Standard USB host and device connectivity; and optioal GPIB and RS232 connectivity.

Features:

Color VGA display with 320 x 240 resolution

Advanced triggering including edge, pulse width and line-selectable video

Analysis

20 automatic measurements

4 math functions including FFTs

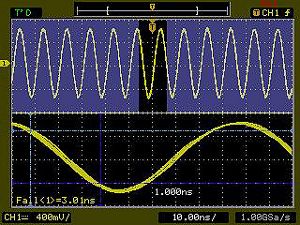

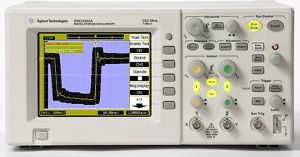

Mask Testing, sequence mode and delayed sweep

Specifications

Frequency Range/ Bandwith: 200MHz

Max. Vertical Sensitivity: 5V/div

Min. Vertical Sensitivity: 2mV/div

Number of Channels: 2Ch

Other Features: COLOR DISPLAY

Record Length: 4kpts

Sample Rate: 1GSa/s

Type (D/A:) Digital
