Agilent / HP / Keysight DSO3102A

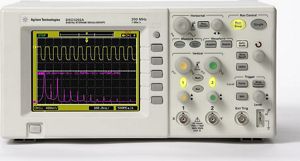

DSO3102A Oscilloscope, 100 MHz

Please help us customize your browsing experience, by selecting one the below.

Description

This unit comes standard with advanced features including sophisticated triggering, automatic measurements, digital filtering, sequence mode acquisition, math functions (including FFTs), stored setups and waveforms, mask testing and much more.

Key Points

100MHz Bandwidth

2 channels

4kpts memory depth

1GSa/s sample rate

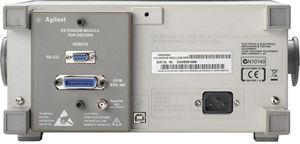

Standard USB host and device connectivity; and optional GPIB and RS232 connectivity.

Color VGA display with 320 x 240 resolution

Advanced triggering including edge, pulse width and line-selectable video

Analysis:
20 automatic measurements
4 math functions including FFTs

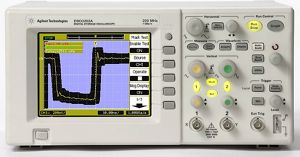

Mask Testing, sequence mode and delayed sweep

Specifications

Frequency Range/ Bandwith: 100MHz

Max. Vertical Sensitivity: 5V/div

Min. Vertical Sensitivity: 2mV/div

Number of Channels: 2Ch

Other Features: COLOR DISPLAY

Record Length: 4kpts

Sample Rate: 1GSa/s

Type (D/A): Digital
